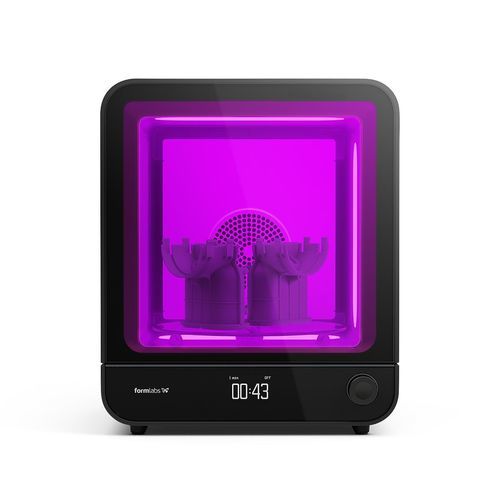

3D printing curing unit Form Cure V2

for resinLEDUV

Overview
Form Cure V2 precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency. Post-curing completes the chemical reaction started during printing, enhancing final part strength, toughness, heat resistance, and creep resistance while creating a harder, less tacky surface.

Performance Highlights

• Cure most Form 4 prints in as little as 60 seconds (general purpose resins).
• 4x more UV power compared to previous generation.
• 5x faster heat-up times than previous generation.
• 1.3x larger chamber than previous generation.
• Select validated presets for Formlabs materials; advanced users can customize time and temperature.

Speed and Heat
Rapid UV curing and near-instant heat-up enable consistent, validated results and effortless post-curing of large Form 4 prints. Reported heat-up times (230V version): 60 °C in 150 seconds; 80 °C in 360 seconds.

Compatibility and Capacity
Designed to fit an entire Form 4 build — from large parts to full production batches. Includes a rotating turntable and supports tall parts and production-oriented builds.

Key Technical Features

• Convection heating system that reaches temperatures up to 100 °C.
• 48 multi-directional LEDs provide a uniform irradiance (listed irradiance value for system: 14.5 mW/cm² in product text).
• Turntable: rotating design for uniform exposure; easy-to-clean glass turntable; side-hinged door for access.
• 45+ pre-programmed cure profiles for common Formlabs materials; supports customized profiles for advanced users.

Tech Specs (table)

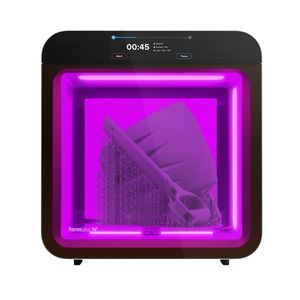

Parameter | Form Cure V2 | Form Cure V1 | Form Cure L V2 | Form Cure L V1
Printer Compatibility | Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2 | Form 3/+, Form 3B/+, Form 2 | Form 4L, Form 4BL, Form 4, Form 4B, Form 3/B/+, Form 2 | Form 4L, Form 4BL, Form 3L, Form 3BL, Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2
Dimensions | 33.7 × 40.4 × 37.2 cm ∘ 13.3 × 14.0 × 15.9 in | 26.2 x 26.2 x 34.0 cm ∘ 10.3 x 10.3 x 13.4 in ∘ Height when open: 64 cm (25.2 in) | 507 × 543 × 545 mm ∘ 20.0 × 21.4 × 21.5 in | 69.0 x 54.0 x 44.5 cm ∘ 27.2 x 21.3 x 17.5 in
Weight | 12.1 kg ∘ 26.7 lb | 5.6 kg ∘ 12.4 lb | 40.0 kg ∘ 88.2 lb | 24 kg ∘ 53 lb
Turntable Diameter | 23.5 cm ∘ 9.25 in | 19.3 cm ∘ 7.6 in | 404 mm ∘ 15.9 in | 39.5 cm ∘ 15.6 in
Maximum Part Height | 24.5 cm ∘ 9.64 in | 18.5 cm ∘ 7.28 in | 365 mm ∘ 14.4 in | 32 cm ∘ 12.6 in
Maximum Cure Chamber Temperature | 100 °C ∘ 212 °F | 80 °C ∘ 176 °F | 100 °C ∘ 212 °F | 80 °C ∘ 176 °F
Light Source | 48 multi-directional LEDs | 13 multi-directional LEDs | 96 multi-directional LEDs | 45 multi-directional LEDs
LED Power | 150 W | 39 W | 350 W | 70 W
LED Radiant | 50 W | 9.1 W | 120 W | 36 W
LED Wavelength | 405 nm | 405 nm | 405 nm | 375 nm, 405 nm
Power Requirements | Input (NA) 100 - 120 V VAC, 50-60 Hz, 15 A ∘ Input (EU) 220 - 240 V VAC, 50-60 Hz, 8 A | 90–240 V ∘ 6.0 A 50/60 Hz ∘ 144 W | Input (NA): 100 – 125 VAC, 50–60Hz, 15 A ∘ Input (EU): 220 – 240 VAC, 50–60Hz, 8 A | Input (NA) 100 - 120 V VAC, 50-60 Hz, 15 A ∘ Input (EU) 220 - 240 V VAC, 50-60 Hz, 8 A

Technical specifications

• Model: Form Cure V2
• Brand: Formlabs
• SKU shown on page: FH-CU-120V-02
• Price (excl. sales tax): 999 USD
• Dimensions (W×D×H): 33.7 × 40.4 × 37.2 cm (13.3 × 14.0 × 15.9 in)
• Weight: 12.1 kg (26.7 lb)
• Turntable diameter: 23.5 cm (9.25 in)
• Maximum part height: 24.5 cm (9.64 in)
• Maximum cure chamber temperature: 100 °C (212 °F)
• Light source: 48 multi-directional LEDs, 405 nm
• LED power: 150 W; LED radiant: 50 W
• Convection heating system; reaches up to 100 °C
• Supports Form 4 / Form 4B and earlier Form series compatibility as listed in tech table
• 45+ pre-programmed cure profiles; validated presets for Formlabs materials; customizable time and temperature for advanced users
• Turntable: rotating, easy-to-clean glass; side-hinged door for access
