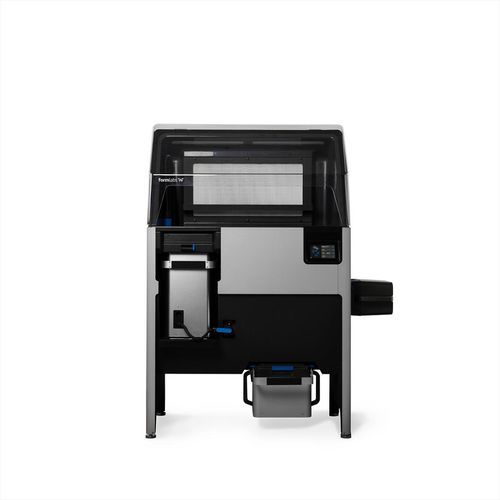

Additive manufacturing post-processing system Fuse Sift

for 3D printing

Overview
Fuse Sift is an all-in-one, free-standing powder recovery and post-processing station designed for Fuse Series SLS 3D printers. It integrates part extraction, powder recovery, storage and automated mixing to simplify SLS workflow and powder management.

Key benefits

• Contained post-processing with negative air pressure to limit powder dispersion while allowing easy access and cleaning.
• Continuous printing workflow by transferring modular build chambers and powder cartridges between printer and Fuse Sift to reduce downtime.
• Automated powder mixing and dispensing to control supply, reduce waste and improve recyclability of material.
• Complete set of finishing tools to remove excess powder from parts efficiently.

How it works

• Part extraction, powder recovery, storage and mixing take place within a single enclosed system to maintain a contained powder environment.
• Used powder is filtered to remove debris, then automatically dispensed and mixed with fresh powder for reuse.

Features

• Compatibility: Fuse Series SLS 3D printers (Fuse 1, Fuse 1+ 30W).
• Negatively pressurized hood with replaceable HEPA filter and independent venting.
• Interactive touchscreen plus physical buttons for operation.
• Connectivity: Wi‑Fi (2.4 GHz), Ethernet (1000 Mbit), USB 2.0.
• Sound emission ≤ 76.5 dB(A).

Included accessories

• Large brush
• Small brush ×2
• Pipe cleaners
• Dental picks
• Gloves
• Dust mask
• Safety glasses
• Vacuum brush tool
• Vacuum crevice tool
• Lifting straps

Optional accessories

• Fuse Sift Glovebox Panel
• Parts Carrier

Tech specs (high level)
Compatible Printer: Fuse 1+ 30W, Fuse 1
Post-Processing: Automated

Technical specifications (table extract)
Printer Compatibility: Fuse Series SLS 3D printers
Dimensions (W × D × H): 101.5 × 61.0 × 154.5 cm
39.9 × 24.0 × 60.8 in
Height When Open: 190 cm (75 in)
Weight: 93 kg (without build chamber or powder)
Build Chamber Dimensions (W × D × H): 27.9 × 34.2 × 48.9 cm
11.0 × 13.5 × 19.3 in
Minimum Access Dimensions (W × D × H): 221.1 × 122.0 × 218.0 cm
Build Chamber Weight: 11 kg (17.6 kg full with 20% packed powder)
Build Volume: 16.5 × 16.5 × 30.0 cm (with radiused corners)
Fresh Powder Hopper Capacity: 17 liters
Used Powder Hopper Capacity: 18 liters
Operating Environment: 18–26 ºC / 68–80 ºF; ≤ 30% ambient humidity
Air Handling: Negatively pressurized hood with replaceable HEPA filter; independent venting system
Power Requirements (typical vacuums): EU: 230 VAC, 7.5 A or 10 A (dedicated circuit); US: 120 VAC, 15 A or 20 A (dedicated circuit) depending on vacuum
Vacuum Requirements: Auxiliary grounded and bonded static-dissipative vacuum (e.g., NFPA 652 compliant)
Connectivity: Wi‑Fi (2.4 GHz); Ethernet (1000 Mbit); USB 2.0
Ethernet: RJ-45 (10/100/1000) — use shielded cable (min Cat5; Cat5e/Cat6 recommended)
Wi‑Fi: IEEE 802.11 b/g/n (2.4 GHz), WPA/WPA2
USB: USB 2.0 B port (use A–B cable)
Sound Emission: ≤ 76.5 dB(A)
Control: Interactive touchscreen and physical buttons

Technical data

• Model: Fuse Sift
• Compatible printers: Fuse Series SLS 3D printers (Fuse 1, Fuse 1+ 30W)
• Dimensions (W×D×H): 101.5 × 61.0 × 154.5 cm
• Height when open: 190 cm
• Weight: 93 kg (without build chamber or powder)
• Build volume: 16.5 × 16.5 × 30.0 cm
• Fresh powder hopper: 17 liters
• Used powder hopper: 18 liters
• Operating environment: 18–26 ºC; ≤30% humidity
• Air handling & filtration: Negative pressure hood with replaceable HEPA filter; independent venting
• Power: EU 230 VAC (7.5 A or 10 A); US 120 VAC (15 A or 20 A) — dedicated circuit required
• Connectivity: Wi‑Fi, Ethernet (1000 Mbit), USB 2.0
• Control: Interactive touchscreen and physical buttons
• Included accessories: brushes (large + 2 small), pipe cleaners, dental picks, gloves, dust mask, safety glasses, vacuum brush & crevice tools, lifting straps
• Optional accessories: Glovebox Panel, Parts Carrier
