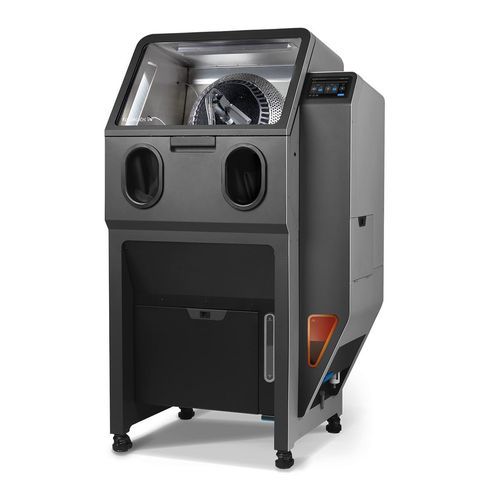

Additive manufacturing post-processing system Fuse Blast

for 3D printing

Overview
Fuse Blast is an automated cleaning and polishing solution for post-processing SLS 3D printed parts. Designed to integrate with the Fuse Series ecosystem and compatible third-party powder bed fusion printers, it enables full cleaning of an entire build chamber in as little as 15 minutes while reducing manual labor and post-processing time.

Polishing (optional)
An optional Polishing System add-on provides a single-step polish for a smooth, semi-gloss, scuff-resistant and dye-ready surface directly from Fuse Sift output, eliminating the need for an additional blast stage for many production-ready parts.

Key benefits

• Fully automated, hands-off cleaning and polishing for SLS parts
• Finish a full build chamber in as little as 15 minutes
• Reduces manual labor and post-processing time (up to ~80% labor reduction when integrated in Fuse workflow)
• In-line ionizer prevents dust and media from re-settling for clean-to-the-touch parts
• Manual-assisted and handheld modes available to handle varied part sizes and geometries
• Passive media recycling and filtering extends media life and reduces overhead
• Fully sealed, workshop-friendly operation with replaceable HEPA filtration and independent venting

Features

• Pre-programmed routines for consistent results; manual mode for custom part requirements
• Optional Fuse Blast Polishing System add-on for semi-gloss, dye-ready finishes
• Compatible with Fuse Series SLS printers and third-party powder bed fusion 3D printers
• Interactive touchscreen product control with foot pedals for manual control
• Connectivity options include Wi‑Fi, Ethernet, and USB
• Designed to clean and polish directly from Fuse Sift output
• Available consumables and accessories: Polishing Agent (115 mL), Polishing Media (4 L), Depowdering Kit and other accessory kits

Technical specifications

• Printer Compatibility: Fuse Series SLS 3D Printers; third-party powder bed fusion 3D printers
• Post-Processing: Automated
• Minimum Dimensions for Convenient Access (W × D × H): 145 × 150 × 210 cm
  57.4 × 59.6 × 82.6 in
• Dimensions (W × D × H): 100 × 75 × 175 cm
  39 × 29.6 × 68.7 in; Height when open: 195 cm (76.8 in)
• Weight: 164 kg (without blasting media)
  360 lb (without blasting media)
• Media Hopper Capacity: 8.3 L (approx. 13 kg of 200–300 µm glass media; 5.2 kg of Polishing Media)
• Waste Hopper Capacity: 10.6 L
• Operating Environment: 10–36 ºC / 50–96.8 ºF; elevation up to 7500 ft / 2286 m
• Air Handling: Negatively pressurized hood with replaceable HEPA filter; independent venting system
• Power Requirements: EU: 230 VAC, 3 A; US: 120 VAC, 6 A
• Compressed Air Requirements: Supply at least 10 SCFM at 90 PSI / 285 SLPM at 6 bar; regulate pressure input between 90–120 PSI / 6–8 bar; typically a single 4 HP compressor
• Connectivity: Wi‑Fi: 2.4 GHz (IEEE 802.11 b/g/n, 2.4/5.0 GHz, WPA/WPA2); Ethernet: 1000 Mbit (RJ-45, Cat5/5e/6 recommended); USB: 2.0 (USB C port)
• Sound Emission: Does not exceed 75 dB(A)
• Product Control: Interactive touchscreen; foot pedals for manual control
• Included Accessories: Transfer container; control pedals; ESD wrist strap; 7 mm socket wrench; blast orifices (3 mm, 4 mm); T-20 driver; floor mat
• Tumbling Basket: Internal diameter 45 cm / 17.7 in; opening diameter 34.5 cm / 13.6 in; basket depth 25 cm / 9.8 in; removable without tools; fits a full Fuse build volume
• Internal Work Area (W × D × H): 71 × 55 × 67 cm / 27.9 × 21.6 × 26.3 in
• Accessible Work Area (W × D × H): 57 × 50 × 67 cm / 22.4 × 19.6 × 26.4 in (basket removed)
