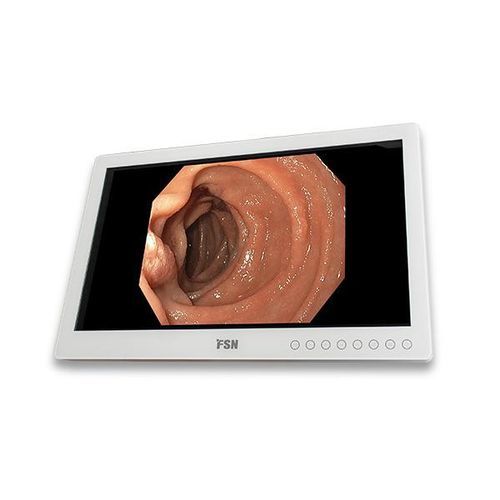

Medical display FS-E2102D

surgicaloperating roomdiagnostic

Product Overview
Monitors from FSN Medical Technologies are engineered for compatibility with surgical and diagnostic systems used in operating rooms, emergency departments and procedure rooms. The 21.5-inch Full HD FS-E2102D provides a compact footprint suited to space-constrained environments while maintaining clinical image requirements.

Latest Technology
The FS-E2102D supports rapid video signal detection, image pan, zoom, freeze, PIP, PBP and a triple‑window layout in a fanless enclosure suitable for sterile fields. Inputs include DisplayPort and HDMI. The flush‑front filter simplifies cleaning and sterilization. User preset support is included for consistent image recall.

User Friendly
An intuitive on‑screen menu enables quick adjustment of image and layout settings. Multi‑modality viewing lets clinicians display several images simultaneously. Rounded housing corners reduce the risk of accidental contact injuries. The lightweight design is adapted for boom or spring‑arm mounting.

Features

• Multiple screen window layout options.
• Protective corner guards to enhance safety in the OR.
• Power outputs for 5V and 12V accessories.
• Fanless enclosure compatible with sterile field workflows.

Specification (table)
Panel: 21.5 inch TFT LCD (LED)
Resolution: 1920 x 1080 pixels
Aspect Ratio: 16 : 9
Active Area: 476.06(H)mm x 267.79(V)mm
Pixel Pitch (mm): 0.2479 x 0.2479
Response Time (typical): 22 ms (rise and fall)
Number of Colors: 16.7 million
Brightness: (typical) 350 cd/m2
Gamut: BT.709 calibrated
Contrast Ratio: (typical) 1000 : 1
Surface Treatment: Anti-reflection, anti-fingerprint
Viewing Angle: (CR>10) R/L 178°, U/D 178°
Input Signal: 2 x HDMI (1.4) 1 x DP (1.2)
Output Signal: 1 x HDMI (1.4)
Power Supply: AC/DC Adaptor (AC 100~240V, DC 12V 5A)
Power Consumption: 45W max
Latency (typical): 2 ms max
Unit Dimension: 527.9(W) x 334.5(H) x 58.9(D) mm (20.78 x 13.17 x 2.32 inch)
Package Dimension: 667(W) x 580(H) x 163(D) mm (26.26 x 22.83 x 6.41 inch)
IP Rating: IP33 - overall
Weight: 5.48 kg (monitor) / 8.45 kg (shipping package)
Certifications: ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device

Technical specifications

• Panel: 21.5 inch TFT LCD (LED)
• Resolution: 1920 x 1080 pixels
• Aspect Ratio: 16 : 9
• Active Area: 476.06(H)mm x 267.79(V)mm
• Pixel Pitch: 0.2479 x 0.2479 mm
• Response Time (typical): 22 ms (rise and fall)
• Number of Colors: 16.7 million
• Brightness (typical): 350 cd/m2
• Gamut: BT.709 calibrated
• Contrast Ratio (typical): 1000 : 1
• Surface Treatment: Anti-reflection, anti-fingerprint
• Viewing Angle: R/L 178°, U/D 178° (CR>10)
• Input Signal: 2 x HDMI (1.4), 1 x DisplayPort (1.2)
• Output Signal: 1 x HDMI (1.4)
• Power Supply: AC 100~240V via AC/DC adaptor, DC 12V 5A
• Power Consumption: 45W max
• Latency (typical): 2 ms max
• Unit Dimension: 527.9 x 334.5 x 58.9 mm
• Package Dimension: 667 x 580 x 163 mm
• IP Rating: IP33 overall
• Weight: 5.48 kg (monitor)
• Certifications: ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device
