Medical display FS-E2102DT

cardiovascularoperating roommedical imaging

Overview

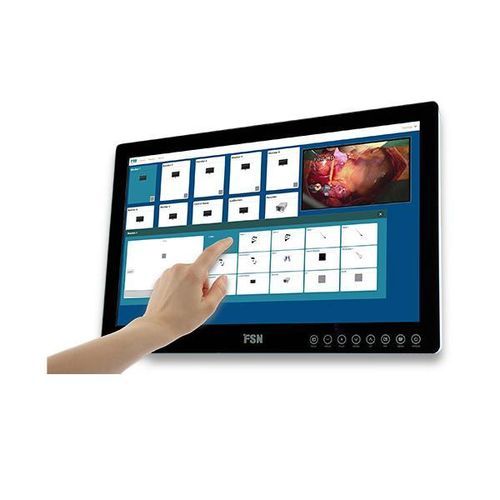

Crystal-clear Full HD 21.5-inch touchscreen designed for medical imaging and clinical workflows. Suitable for endoscopy, ultrasound, cardiology, operating-room and boom-mounted camera systems. Displays FHD images with near-zero latency and is compatible with major MIS camera systems.

User-friendly design
Intuitive on-screen menu for image and layout settings. Supports multi-modality viewing: PIP, PBP and triple-image modes. Rounded housing corners reduce bump risk in the OR. Lightweight for boom or spring-arm mounting. Front surface is edge-to-edge glass for fast, easy cleaning.

Glove Friendly — Fingertip Control
Projected capacitive 10-point multi-touch (USB 2.0) optimized for use with gloves and complex medical UIs. High-brightness LED backlight with BT.709 color calibration for consistent FHD medical images. Fanless, sterile-field compatible enclosure.

Features

• Multiple screen layout options (PIP, PBP, triple)
• Protective corner guards for safer OR handling
• Power outputs for 5V and 12V accessories
• Fanless, sterile-field compatible design

Specifications
Panel: 21.5 inch TFT LCD (LED)
Resolution: 1920 x 1080 (FHD)
Aspect ratio: 16:9
Active area: 476.06(H)mm x 267.79(V)mm
Touchscreen: 10-point projected capacitive (USB 2.0)
Brightness: 300 cd/m2 (typical)
Latency: 2 ms (typical)
Inputs: 2×HDMI (1.4), 1×DisplayPort (1.2)
Power: AC 100–240V via AC/DC adapter (DC 12V 5A)
IP rating: IP33 overall
Weight (monitor): 5.5 kg
Certifications: UL/EN 60601 series, EN60601-1-2, CE, FCC, MDR(EU) 2017/745 Class I

Technical specifications

• Model: FS-E2102DT
• Display size: 21.5" FHD (1920 x 1080)
• Touch: 10-point projected capacitive (USB 2.0)
• Brightness: 300 cd/m2 (typical)
• Inputs: 2×HDMI (1.4), 1×DisplayPort (1.2)
• Power supply: AC 100–240V (DC 12V 5A)
• Power consumption: 45W max
• Latency: 2 ms (typical)
• IP rating: IP33 overall
• Weight (monitor): 5.5 kg
• Certifications: ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, CE, FCC
