Medical display FS-A2702DS

surgicalmedical imagingendoscopy

Overview

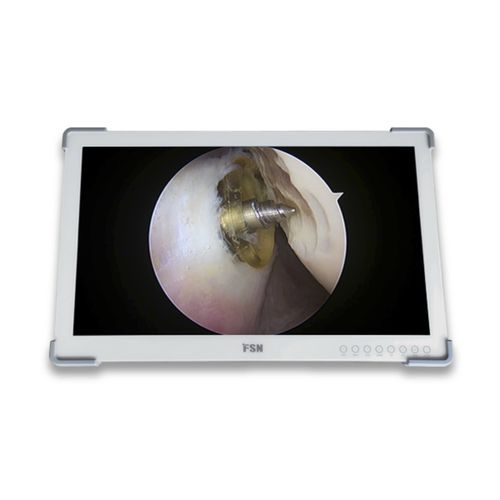

The FS-A2702DS 27" FHD medical grade display features a high-brightness LED backlight and Rec.709 (sRGB) color calibration for consistent full HD imaging. Designed for surgical endoscopic camera systems and other medical imaging devices, it supports multi-window modalities and an intuitive on-screen menu for image and layout configuration. Lightweight for mounting on endoscopic carts, booms, or spring-arms, with a back cable cover for organized cable management.

Key features

• High-brightness LED backlight with BT.709 (sRGB) calibration
• Multi-modality viewing: PIP, PBP, triple, quad
• Intuitive full-featured on-screen menu for image and layout settings
• Lightweight design for carts, booms, or spring-arm mounting
• Back cable cover for cable management
• Protective corner guards
• Power outputs for 5V and 12V accessories
• Multiple screen window layouts available

Specifications

• Panel: 27 inch TFT LCD (LED)
• Resolution: 1920 x 1080 pixels
• Aspect ratio: 16:9
• Pixel pitch: 0.3114 x 0.3114 mm
• Response time (typical): 14 ms (gray to gray)
• Colors: 1.07 billion
• Brightness (typical): 800 cd/m2
• Color gamut: BT.709 calibrated
• Contrast ratio (typical): 1000:1
• Surface: Anti-reflection, anti-fingerprint
• Viewing angle (CR>10): R/L 178°, U/D 178°
• Inputs: 2 x HDMI (1.4), 1 x DP (1.2), 2 x SDI (3G/HD/SD)
• Outputs: 1 x HDMI (1.4), 2 x SDI (3G/HD/SD)
• Power supply: AC/DC adaptor (AC 100–240V, DC 24V/6.6A)
• Power consumption: 110W max
• Latency (typical): 2 ms max
• Unit dimensions: 673(W) x 425(H) x 75.2(D) mm (26.49 x 16.73 x 2.96 inch)
• Package dimensions: 743(W) x 653(H) x 227(D) mm (29.25 x 25.71 x 8.94 inch)
• IP rating: IP33
• Weight: 8.52 kg (monitor with cover); 13 kg (shipping package)
• Certifications: ANSI/AAMI ES60601-1 (UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device

Notes
Intended for surgical and endoscopic imaging workflows; offers flexible input/output options, accessory power outputs and optional video demonstration available.
