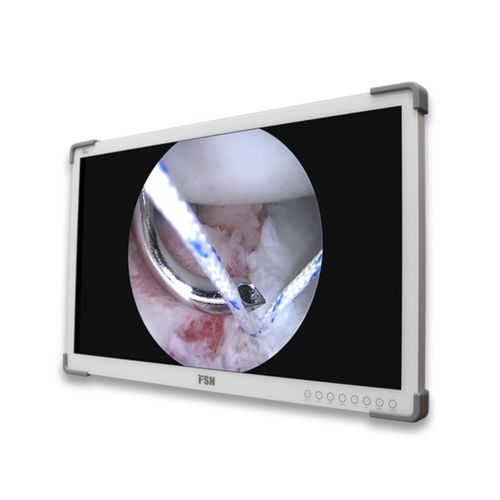

Medical display FS-A3202DS

operating roomfull HD1920 x 1080

Product overview
FS-A3202DS is a 32-inch full HD medical-grade monitor designed for use in operating rooms and other clinical environments. The display offers multiple screen layouts (PIP, PBP, triple, quad) to present video sources simultaneously and supports user presets for quick recall. Its dimensions fit most boom mounting systems and the enclosure is compatible with sterile-field use. Multiple input/output formats are available, including HDMI, DisplayPort and 3G-SDI, reducing the need for external converters. DC power output near the video I/O supports small accessories such as fiber receivers or wireless transmitters. A rear cover reduces cable clutter.

Features

• Selectable multi-window layouts: PIP, PBP, triple and quad.
• Protective corner guards to reduce impact risk in the OR.
• Power outputs for 5V and 12V accessories to support peripheral devices.
• Full edge-to-edge front glass with anti-reflection and anti-fingerprint treatment for easy cleaning and disinfection.

Specification (table)
Panel: 32 inch TFT LCD (LED)
Resolution: 1920 x 1080 pixels (FHD)
Aspect Ratio: 16:9
Active Area: 698.40 (H) mm x 392.85 (V) mm
Pixel Pitch: 0.36375 x 0.36375 mm
Response Time (typical): 25 ms
Number of Colors: 16.7 million
Brightness (typical): 500 cd/m2
Calculated Gamut: BT.709 calibrated
Contrast Ratio (typical): 1300:1
Surface Treatment: Anti-reflection, anti-fingerprint
Viewing Angle (CR>10): R/L 178°, U/D 178°
Input Signal: 2 x HDMI (1.4), 1 x DP (1.2), 2 x SDI (3G/HD/SD)
Output Signal: 1 x HDMI (1.4), 2 x SDI (3G/HD/SD)
Power Supply: AC/DC adaptor (AC 100–240V, DC 24V/6.6A)
Latency: 2 ms max
Unit Dimension: 773 (W) x 478 (H) x 75.2 (D) mm
Package Dimension: 914.4 (W) x 749.3 (H) x 234.95 (D) mm
IP Rating: IP33 overall
Weight: 11.5 kg (monitor with cover); 17.3 kg (shipping package)
Certifications: ANSI/AAMI ES60601-1 (UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device

Technical specifications

• Model: FS-A3202DS
• Display size: 32 inch FHD (1920 x 1080)
• Brightness: 500 cd/m2; BT.709 calibrated gamut
• Inputs: 2× HDMI (1.4), 1× DisplayPort (1.2), 2× SDI (3G/HD/SD)
• Outputs: 1× HDMI (1.4), 2× SDI (3G/HD/SD)
• Power: AC 100–240V via AC/DC adaptor; DC 24V/6.6A output for accessories
• Latency: ≤2 ms; Response time (typical) 25 ms
• Front surface: Edge-to-edge glass with anti-reflection and anti-fingerprint treatment
• Mounting: Compatible with most boom mounting systems; sterile-field compatible enclosure
• Protection: Protective corner guards; IP33 overall
• Dimensions (W×H×D): 773 × 478 × 75.2 mm; Package: 914.4 × 749.3 × 234.95 mm
• Weight: 11.5 kg (unit), 17.3 kg (packaged)
• Certifications: UL60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I, FCC Class B
