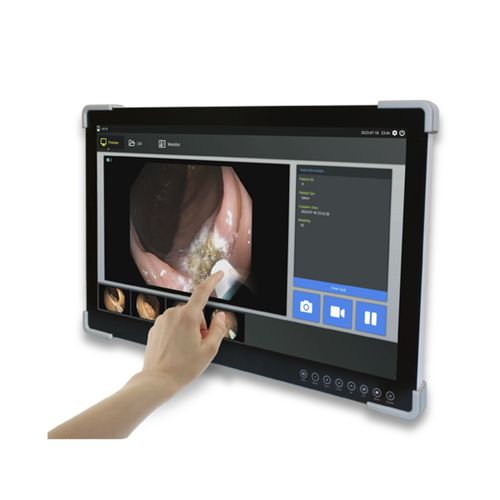

Endoscopy display FS-A2702D series

medical imagingsurgicalfor ultrasound imaging

Product Overview
FS-A2702DT and FS-A2702DST (with SDI) are projected capacitive multi-touch 27-inch monitors designed for medical applications including endoscopy, fluoroscopy, and ultrasound. They provide high-brightness LED backlight and color calibration to Rec. 709 (sRGB gamut) to ensure Full HD medical-grade image consistency.

Key Features

• Projected capacitive 10-point multi-touch for responsive touch control (USB 2.0).
• High brightness LED backlight with typical 700 cd/m² for bright surgical environments.
• BT.709 (sRGB) calibrated color for consistent medical imaging.
• Multi-modality display options (PIP, PBP, triple, quad) and multiple window layouts.
• Intuitive, full-featured on-screen menu for image and layout settings.
• Protective rounded corner bumpers for added safety in sterile environments.
• Edge-to-edge front glass for fast disinfection and quick surgery-room turnaround.
• Lightweight design suitable for boom or spring-arm mounting; convenient back cable cover for cable management.
• Accessory power outputs (5V and 12V) for connected devices.

Additional Notes
Designed specifically for presenting images from medical imaging devices. Surface treatment provides anti-reflection and anti-fingerprint properties to help maintain clear images during procedures.

Technical Specifications

• Panel: 27 inch TFT LCD (LED)
• Resolution: 1920 x 1080 pixels
• Aspect Ratio: 16 : 9
• Touchscreen: 10 point projected capacitive USB (2.0)
• Pixel Pitch (mm): 0.3114 x 0.3114
• Response Time (typical): 14 ms (gray to gray)
• Number of Colors: 1.07 billion
• Brightness (typical): 700 cd/m2
• Gamut: BT.709 calibrated
• Contrast Ratio (typical): 1000 : 1
• Surface Treatment: Anti-reflection, anti-fingerprint
• Viewing Angle (CR>10): R/L 178°, U/D 178°
• Input Signal FS-A2702DT: 2 x HDMI (1.4), 1 x DP (1.2)
• Input Signal FS-A2702DST: 2 x HDMI (1.4), 1 x DP (1.2), 2 x SDI (3G, HD, SD)
• Output Signal FS-A2702DT: 1 x HDMI (1.4)
• Output Signal FS-A2702DST: 1 x HDMI (1.4), 2 x SDI (3G, HD, SD)
• Power Supply: AC/DC Adaptor (AC 100~240V, DC 24V/6.6A)
• Power Consumption: 120W max
• Latency (typical): 2 ms max
• Unit Dimension: 673(W) x 425(H) x 75.2(D) mm (26.49 x 16.73 x 2.96 inch)
• Package Dimension: 743(W) x 653(H) x 227(D) mm (29.25 x 25.71 x 8.94 inch)
• IP Rating: IP33 (overall)
• Weight FS-A2702DT: 8.52 kg (monitor with cover), shipping 13 kg
• Weight FS-A2702DST: 8.67 kg (monitor with cover), shipping 13.3 kg
• Certifications: ANSI/AAMI ES60601-1 (UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR (EU) 2017/745 Class I Medical Device
