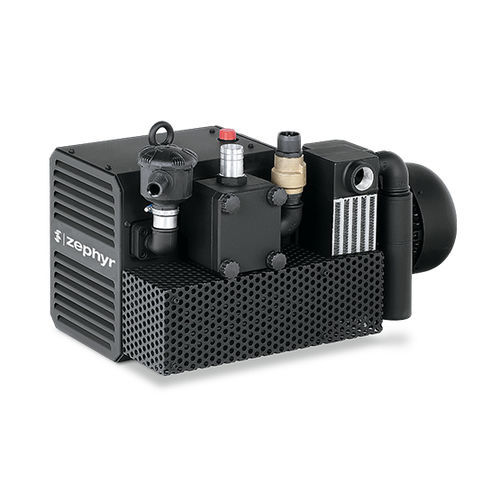

Medical vacuum pump C-KLR

rotary clawoil-freedry

Overview
The C-KLR claw pressure-vacuum pump is a dry, contact-free compressor providing oil-free vacuum and pressure in a single compact unit. It is driven by an IE3 flange-mounted motor (DIN EN 60034), rated IP55 with class F insulation, and incorporates integrated air cooling including a compressed-air after-cooler to reduce exhaust temperature. The C-KLR delivers continuous vacuum to -0.6 bar and pressure to +1.0 bar across a capacity range of 80–140 m³/h, suitable for industrial processes that require clean, low-maintenance compression.

Key benefits

• Energy-efficient drive: IE3 motor and optimized design reduce power consumption.
• Dry, oil-free compression: Contact-free claw elements prevent oil contamination of the process gas.
• Independent vacuum and pressure operation: Separate operating points for flexible integration.
• Low maintenance: Robust construction and simple service reduce downtime.
• Integrated cooling and after-cooler: Built-in air cooling and after-cooler eliminate the need for external cooling media.
• Wide applicability: Fits processes across multiple industries requiring both vacuum and pressure.

Suggested industries / applications

• Packaging
• Food processing
• Pharmaceuticals and medical
• Chemical industry
• Plastics and molding
• Electronics manufacturing
• Printing and paper
• Automotive
• Environmental engineering

Technical specifications

• Model family: C-KLR
• Capacity range: 80–140 m³/h
• Vacuum (continuous): up to -0.6 bar
• Pressure: up to +1.0 bar
• Motor: IE3 flange-mounted motor (DIN EN 60034)
• Protection: IP55
• Insulation class: F
• Cooling: Integrated air cooling with after-cooler
• Compression type: Dry, contact-free claw compression
