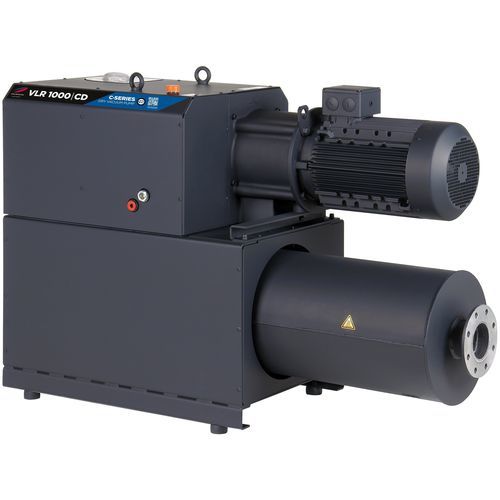

Medical vacuum pump C-VLR1000

rotary clawoil-freedry

Overview
The C-VLR1000 is an oil-free claw (dry) vacuum pump designed for continuous industrial operation. It provides up to 1140 m³/h nominal suction capacity and an ultimate vacuum of 200 mbar (abs). The pump uses frictionless claw compression with integrated air cooling for compact installation and low-noise operation, minimizing auxiliary systems and maintenance needs.

Benefits

• Dry, frictionless compression reduces internal wear and eliminates oil handling.
• Stable performance across the operating range ensures predictable process behaviour.
• Integrated air cooling removes the need for external cooling media.
• Optional variable speed drive (VSD) enables precise capacity control and energy savings.
• Compact footprint and low noise facilitate system integration into production lines.
• Low maintenance design reduces downtime and operating costs.

Technical data (summary)

• Suction capacity: up to 1140 m³/h (nominal).
• Ultimate vacuum: 200 mbar (abs) in continuous operation.
• Compression: dry, frictionless claw technology.
• Cooling: integrated air cooling system (no external cooling medium required).
• Noise: low-noise design for industrial environments.
• Drive: fixed speed standard, optional variable speed drive (VSD).

Specifications

• Model: C-VLR1000.
• Maximum nominal suction capacity: up to 1140 m³/h.
• Ultimate vacuum (continuous): 200 mbar (abs).
• Compression type: dry, frictionless claw.
• Cooling: integrated air cooling.
• Drive options: fixed speed; optional VSD.
• Typical applications: packaging, plastics, woodworking, printing, medical, environmental, electronics, chemical, food processing.
