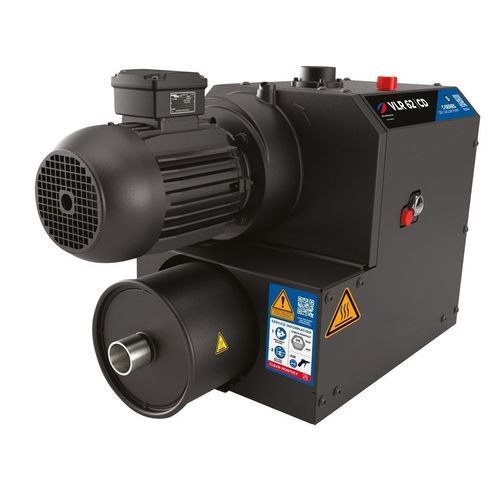

Medical vacuum pump C-VLR

rotary clawoil-freedry

Overview The C-VLR 62/122 claw oil-free vacuum pumps combine dry, contact-free compression with an integrated frequency converter. Designed for a reduced footprint, low noise and energy-efficient operation, these claw pumps deliver continuous-duty performance with model-dependent ultimate vacuum levels and a suction capacity range suitable for industrial applications.

Standard features

• Flange-mounted motor with integrated frequency converter
• Air cooling via integrated fan
• Silencing hood for noise reduction
• Fine-mesh inlet filter
• Suction-side vacuum non-return valve
• Vacuum relief valve

Key benefits

• Compact footprint: up to 50% smaller than comparable models
• Improved energy efficiency: up to 50% better specific performance
• Quiet operation: noise levels down to 63 dB(A) on selected models
• Advanced flushing concept for improved flushing performance and optimal access to the A-side
• Flexible cooling: passive and active cooling configurations
• Heavy-duty option with ProCoat™ finish available
• High motor efficiency: IE3 class motors

Industries and applications

• Packaging (food and beverage)
• Plastics and recycling
• Woodworking
• Printing and paper
• Medical and healthcare
• Environmental engineering and wastewater
• Electronics manufacturing
• Chemical processing
• Food processing

Technical specifications

• Suction capacity: approximately 62 m³/h to 144 m³/h depending on model
• Ultimate vacuum (continuous operation): model/configuration dependent; typical values: 100 mbar (abs) general, 400 mbar abs for 62 and 122 Active, 100 mbar abs for 62 and 122 Passive
• Cooling options: passive and active
• Heavy-duty option: ProCoat™ finish available
• Motor: IE3 efficiency class
• Motor power examples: 50 Hz: 1.25 kW, 1.5 kW, 2.7 kW; 60 Hz: 1.5 kW, 1.8 kW, 3 kW
• Noise level: as low as 63 dB(A) for specific models
• Standard mechanical features: integrated frequency converter, silencing hood, fine-mesh filter, suction non-return valve, vacuum relief valve
• Design highlights: next-generation claw technology with improved flushing and a significantly reduced footprint
