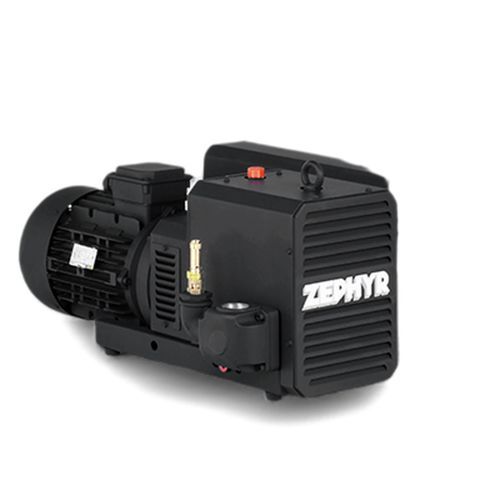

Medical compressor C-DLR 100-150

laboratoryrotary clawdry

Product Overview
The C-DLR 100-150 compressors feature a double-shaft rotary piston (claw) design that provides dry, contact-free compression. Counter-rotating claw rotors are synchronized by a gear pair in the gearbox. Gearbox gears and motor-side bearings are continuously oil-lubricated via a dedicated oil supply and oil conveying devices. Integrated air cooling removes heat without additional cooling media.

Benefits

• Energy-efficient operation with dry, contact-free compression suitable for contamination-sensitive processes.
• Consistent performance across the operating range for stable process control.
• Integrated air cooling eliminates the need for external cooling systems.
• Optional variable speed drive to match capacity to process demand.
• Low-maintenance design to reduce downtime and service effort.

Technical Data

• Capacity range: approximately 100–170 m³/h.
• Continuous operation pressure: up to 1.9 bar.
• Lubrication: gearbox gears and motor-side bearings continuously oil-lubricated; dedicated gearbox oil supply and oil conveying devices.
• Design: double-shaft rotary piston (claw) design; contact-free, dry compression with counter-rotating claw rotors synchronized by a gearbox gear pair.

Industries / Applications

• Food and Beverage
• Packaging
• Pharmaceutical Manufacturing
• Medical and Laboratory Technology
• Pneumatic Conveying Systems
• Printing and Paper
• Automotive and Transportation
• Environmental Technology
• Chemical Processing
• Electronics and Semiconductors
• Woodworking and Furniture Production

Multimedia
Animation: a product animation/video (Elmo Rietschle New Claw Technology C Series) is available.

Technical Specifications

• Model: C-DLR 100-150
• Compression type: dry, contact-free claw (double-shaft rotary piston)
• Capacity: ~100–170 m³/h
• Max continuous pressure: up to 1.9 bar
• Cooling: integrated air cooling
• Lubrication: oil-lubricated gearbox and bearings (dedicated oil supply)
• Synchronization: gear pair in gearbox for counter-rotating claw rotors
• Optional features: variable speed drive
• Maintenance: low-maintenance design
