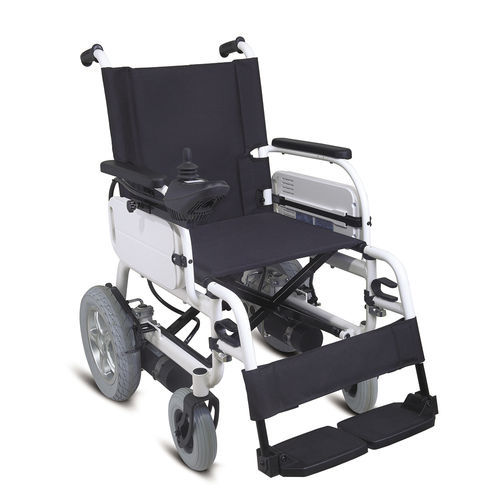

Electric wheelchair DP-110LF1

indoorfoldingwith legrest

Overview
Folding electric wheelchair for elderly and disabled users designed for transport and everyday assistance.

Product Details

• Painted folding aluminum alloy frame
• Turn-up inclined armrest
• Fold-back handle
• Removable footrest
• PU front and rear wheels
• Lithium battery
• Comfortable additional sponge pad
• Foldable support handle

Main parameters (unit cm)
Total width: 62
Seat width: 46
Rear wheel diameter: 32
Front wheel diameter: 20
Seat height: 49
Total height: 93
Backrest height: 43
Cruising range: 20

Performance & Other Specifications
Speed: 1–7 km/h
Battery capacity: 23AH
Motor power: 1200W × 2
Obstacle clearance: 4
Climbing angle: 12°
Maximum load: 100KG
Packing size: 81 × 40 × 792
N.W.: 39KG
G.W.: 45.5KG

Product Description
Dongpin's electric wheelchairs are frequently upgraded with high-performance drive units, intelligent controllers and lithium batteries. The manually operated intelligent controller enables forward, reverse, steering and posture adjustments. The product combines precision mechanics, intelligent control and engineering design to meet transport and care demands in medical environments.

Features / Technical specifications

• Model: DP-110LF1
• Product type: Folding electric transport wheelchair
• Frame: Painted folding aluminum alloy
• Armrest: Turn-up inclined armrest
• Handle: Fold-back handle / Foldable support handle
• Footrest: Removable
• Wheels: PU front and rear wheels
• Battery: Lithium, capacity 23AH
• Motor: 1200W × 2
• Speed: 1–7 km/h
• Cruising range: 20
• Total width: 62 cm
• Seat width: 46 cm
• Rear wheel diameter: 32 cm
• Front wheel diameter: 20 cm
• Seat height: 49 cm
• Total height: 93 cm
• Backrest height: 43 cm
• Climbing angle: 12°
• Maximum load: 100 kg
• Packing size: 81 × 40 × 792
• Net weight: 39 kg
• Gross weight: 45.5 kg
