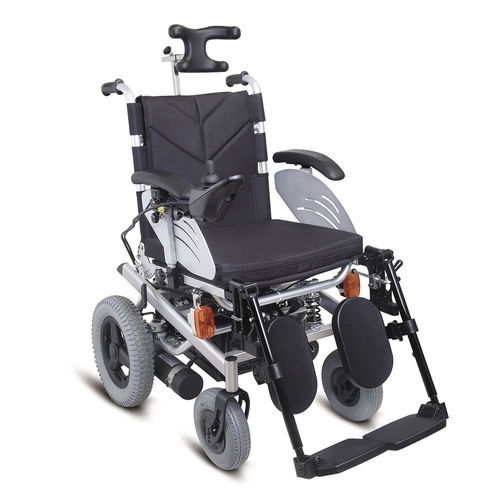

Electric wheelchair DP-123GC
outdoorfoldingreclining

Electric wheelchair - DP-123GC - Guangdong Dongpin Beauty & Medical Technology - outdoor / folding / reclining
Electric wheelchair - DP-123GC - Guangdong Dongpin Beauty & Medical Technology - outdoor / folding / reclining
Add to favorites
Compare this product
Go to the Guangdong Dongpin Beauty & Medical Technology website for more information

Characteristics

Propulsion
electric
Applications
outdoor
Options
folding, reclining
Accessories
with legrest, with armrests
Frame materials
steel frame
Total height (cm)

Max.: 126 cm
(49.6 in)

Min.: 93 cm
(36.6 in)

Total length (cm)

123 cm
(48.4 in)

Total width (cm)

67 cm
(26.4 in)

Tare weight (kg)

81 kg
(178.6 lb)

Max supported weight (kg)

125 kg
(275.6 lb)

Max speed (km/h)

8 km/h
(5 mph)

Description

Product name
DP-123GC Reclining Lightweight Electric Wheelchair. Also described as reclining lightweight electric wheelchair, folding electric wheelchair, lithium battery electric wheelchair.

Features
  • Steel frame
  • Removable and adjustable armrests
  • Removable lifting foot support
  • Foam front wheel
  • Foamed rear wheel
  • 40AH lead-acid battery (as listed)
  • Adjustable backrest angle
  • Seat angle electrically adjustable


Main parameters (unit cm)
  • Total length: 123 cm
  • Total width: 67 cm
  • Seat width: 43 cm
  • Rear wheel diameter: 35 cm
  • Front wheel diameter: 23 cm
  • Seat height: 58 cm
  • Total height: 93–126 cm
  • Backrest height: 47 cm
  • Packing size: 78 × 68 × 69 cm


Performance & power
  • Range (endurance mileage): 25 km
  • Speed: 1–8 km/h
  • Battery capacity: 40AH (lead-acid as listed)
  • Motor power: 200W × 2
  • Obstacle clearance: 5 cm
  • Climbing angle: 12°
  • Maximum load: 125 kg
  • Net weight (N.W.): 81 kg
  • Gross weight (G.W.): 88 kg


Description
DP-123GC is a reclining, lightweight electric wheelchair designed for folding and transport. The control console is sensitive and easy to operate, with electrically adjustable seat angle and adjustable backrest for patient positioning. The product supports removable armrests and a removable lifting foot support to simplify transfers. Style and some configurations can be customized according to client needs. Manufacturer based in China.

Technical specifications
  • Model: DP-123GC
  • Frame: Steel frame
  • Armrests: Removable and adjustable
  • Foot support: Removable lifting foot support
  • Front wheel: Foam
  • Rear wheel: Foamed
  • Battery type (as listed): 40AH lead-acid battery
  • Battery capacity: 40AH
  • Motor power: 200W × 2
  • Range: 25 km
  • Speed: 1–8 km/h
  • Obstacle clearance: 5 cm
  • Climbing angle: 12°
  • Maximum load capacity: 125 kg
  • Total length: 123 cm
  • Total width: 67 cm
  • Seat width: 43 cm
  • Seat height: 58 cm
  • Total height: 93–126 cm
  • Backrest height: 47 cm
  • Rear wheel diameter: 35 cm
  • Front wheel diameter: 23 cm
  • Packing size: 78 × 68 × 69 cm
  • Net weight (N.W.): 81 kg
  • Gross weight (G.W.): 88 kg
  • Functions: Reclining, folding, electrically adjustable seat angle, adjustable backrest angle
  • Customization: Style can be customized
