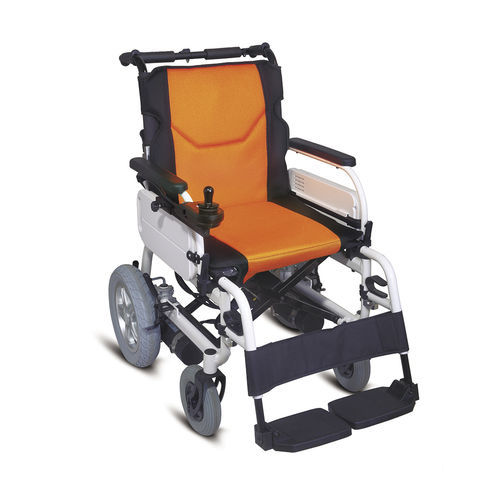

Electric wheelchair DP-111APF2

outdoorindoorreclining

Product overview

• Multifunctional electric wheelchair with power-assist function
• Portable design with removable armrest and footrest
• Equipped with lead-acid battery option

Features

• Steel frame construction
• Removable inclined armrest
• Removable footrest
• PU front wheels
• Inflatable rear wheels
• Listed 6.28AH lead-acid battery (option)
• Adjustable backrest angle
• Electrically adjustable seat angle

Main parameters (unit: cm)

• Total length: 108
• Total width: 65
• Seat width: 46
• Rear wheel diameter: 54
• Front wheel diameter: 20
• Seat height: 51
• Total height: 94
• Backrest height: 43
• Cruising range: 20 km

Description
Multifunctional power-assist electric wheelchair suitable for indoor and outdoor use. Designed and manufactured by a professional electric wheelchair manufacturer in China. Battery options include a main 21AH battery and a listed 6.28AH lead-acid battery. Control console provides responsive operation and the product integrates safety-related functions for daily mobility support.

Technical specifications

• Speed: 1–6 km/h
• Battery capacity: 21AH (main)
• Listed battery: 6.28AH lead-acid
• Motor power: 150W x 2
• Cruising range: 20 km
• Obstacle clearance: 4 cm
• Climbing angle: 8°
• Maximum load: 100 kg
• Packing size: 86 x 48 x 78 cm
• Net weight (N.W.): 50 kg
• Gross weight (G.W.): 54 kg
• Rear wheel diameter: 54 cm
• Front wheel diameter: 20 cm
• Seat width: 46 cm
• Seat height: 51 cm
• Total length: 108 cm
• Total width: 65 cm
• Total height: 94 cm
• Backrest height: 43 cm
