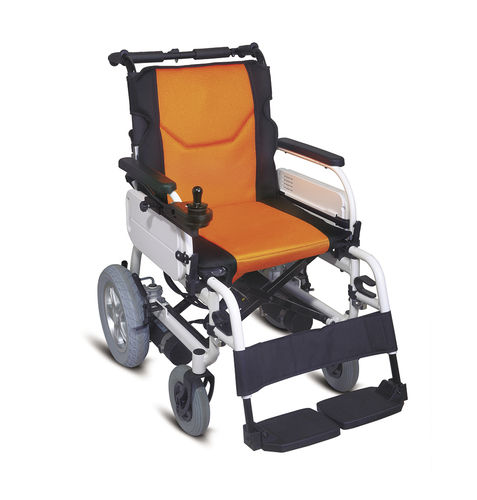

Electric wheelchair DP-110LAE

outdoorindoorfolding

Product overview
Multifunctional folding electric wheelchair designed for daily mobility and travel. Aluminum-alloy frame, foamed front and rear wheels for low noise and good load capacity, responsive controller and integrated safety features. Equipped with an imported lithium battery compatible with air transport limits.

Main parameters (unit cm):

• Total length: 106 cm
• Total width: 62 cm
• Seat width: 46 cm
• Rear wheel diameter: 32 cm
• Front wheel diameter: 20 cm
• Seat height: 50 cm
• Total height: 94.5 cm
• Backrest height: 43 cm
• Cruising range: 20 km
• Speed: 1–7 km/h
• Battery capacity: 23 AH
• Motor power: 200 W x 2
• Obstacle clearance: 4 cm
• Climbing angle: 12°
• Maximum load: 100 kg
• Packing size: 79 x 34 x 76 cm
• Net weight (N.W.): 36.6 kg
• Gross weight (G.W.): 42 kg

Main functions and materials

• Aluminum alloy frame: corrosion-resistant and lightweight.
• Foamed front wheel: quiet operation with good load capacity.
• Foamed rear wheels: quiet, strong load capacity, non-marking.
• Fold-back handle: ergonomic, space-saving design.
• Rear folding armrest for easier transfers.
• Foldable support handle: user-friendly handling.
• Detachable foot support: easy assembly and removal.
• Imported lithium battery: extended runtime; acceptable for air carriage under common airline rules.

Technical specifications

• Model: DP-110LAE
• Total length: 106 cm
• Total width: 62 cm
• Seat width: 46 cm
• Rear wheel diameter: 32 cm
• Front wheel diameter: 20 cm
• Seat height: 50 cm
• Total height: 94.5 cm
• Backrest height: 43 cm
• Cruising range: 20 km
• Speed: 1–7 km/h
• Battery capacity: 23 AH
• Motor power: 200 W x 2
• Obstacle clearance: 4 cm
• Climbing angle: 12°
• Maximum load: 100 kg
• Packing size: 79 x 34 x 76 cm
• Net weight (N.W.): 36.6 kg
• Gross weight (G.W.): 42 kg
