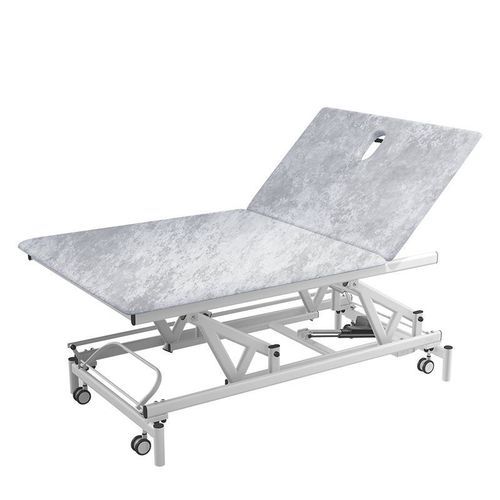

Electric Bobath table YK-8000A

pneumaticwith tilting backrest2-section

The YK-8000A Bobath Table is an electrically adjustable rehabilitation table for neurological rehabilitation and therapeutic training, providing a large working area, strong lifting thrust and configurable control options.

Product introduction
The lifting table consists of a movable mattress board mounted on a lifting bed body with an articulated connection between the head/backrest section and the middle lying section. The head/backrest section is positioned with imported pneumatic (gas) springs for secure adjustment. Lifting and lowering are driven by a mechanism under the frame that delivers smooth operation and high thrust.

Features

• Designed for rehabilitation of patients with neurological conditions; spacious surface allows therapist and patient to perform a wide range of therapeutic techniques.
• Low operating height (43–95 cm) to facilitate transfer, balance and standing training.
• Pneumatic-spring-assisted backrest adjustable from horizontal to 85° to support lying and sitting exercises.
• Two width options available; choice of manual or foot control switch according to clinical needs.

Characteristics / Technical specifications

• Model: YK-8000A
• Motor: LINAK
• Gas spring: German imported (pneumatic-spring-assisted backrest)
• Table surface: genuine leather
• Thrust: 6000 N
• Dimensions (options): 210 cm × 120 cm; 220 cm × 95 cm
• Height range: 43–95 cm
• Backrest adjustment: 0–85°
• Maximum load: 170 kg
