hospital bed / medical / manual / fixed-height



  • Applications:

    hospital, medical

  • Operation:


  • Features:

    fixed-height, Trendelenburg, reverse Trendelenburg

  • Other characteristics:

    on casters, orthopedic traction frame

  • Number of sections:

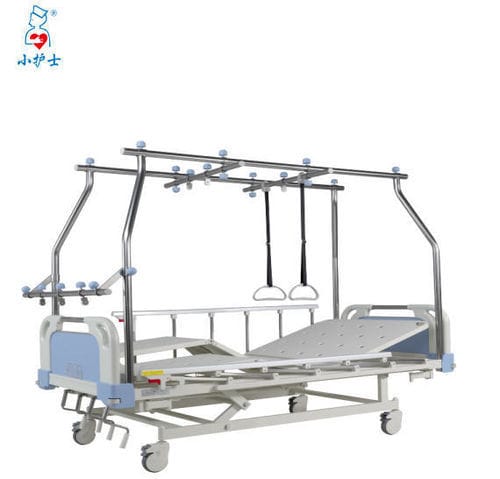

Stainless steel Multi-function orthopaedics bed
Oversize: 2030mm(L)*960mm(W)*600mm(H)

Main features:
1. Stainless steel bed tracking frame, the bed is epoxy coating.
2. five function, which can be operated by crank, the details are as follows:
(1)back rest:0º-70º±5º (2)knee rest:0º-35º±5º
(3)the leg section is devided into two parts, which is convinient for the patient.
(4) trendelenburg 10±2º (5) reverse trendelenburg 10±2º
3. with stainless steel traction frame with pulling handle over the bed
4. Anti-bumper in four corners, with I.V. rod locations
5.4 dia-125mm castors, with individual brakes
6. Freight saving knock-down construction.
