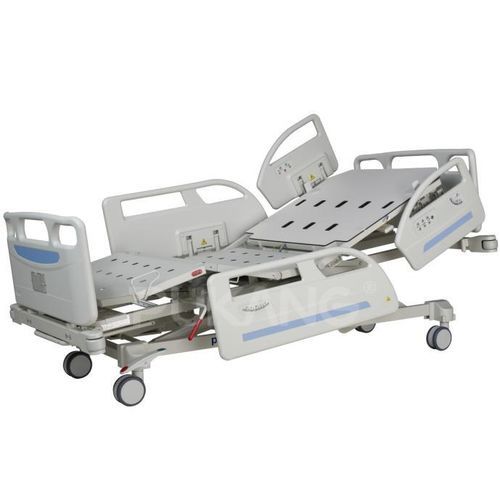

Medical bed DA-2 (A2)
intensive careelectricheight-adjustable

medical bed
medical bed
medical bed
medical bed
medical bed
medical bed
medical bed
Add to favorites
Compare this product


Characteristics

Applications
medical, intensive care
Operation
electric
Features
height-adjustable, Trendelenburg, reverse Trendelenburg, folding
Component
on casters, with locking wheels, with transparent panels
Options
washable
Number of sections
4-section
Height

Min.: 470 mm
(19 in)

Max.: 790 mm
(31 in)

Width

2,220 mm
(87.4 in)

Length

1,060 mm
(41.7 in)

Weight capacity

210 kg
(463 lb)

Description

1. All closed openings and gaps meet the requirement of CE60601-2-52:2009 standard. 2. The height from top of guardrail to bed platform is 380mm 3. Adopt imported motor, which is easy and flexible to operate and has no noise. With backup battery, the number of operations in the case of power failure is ≥50 times, with visible indicator in controller for insufficient or low charge. With anti-pinch function, there is no unacceptable risk when the operator or patient's limb enters the movable space of the motor. 4. Side rail: ① One long and short side rail articulated together with the bed for patient safety. ② It can be automatically locked when raising, and each side rail can bear more than 50KG. ③ Side rail safety switch design, placed under the guardrail to avoid misuse of the patient; ④ Equipped with gas spring for easy operation and slowly down, that all rails descend to the middle of the mattress or below. ⑤ The steel structure of the side rail base is welded on the bed to ensure safety. ⑥ The 4-pieces side rail has angle indicator that allows the caregiver to quickly and easily adjust the backrest angle and Trend and reverse position of the bed. ⑦ Membrane-Type integrated Control (located on the outside of side rail or the footboard): raise and lower the bed, raise and lower the backrest, raise and lower the kneerest. 5. The detachable headboard and footboard with integrated handle or crank to push the bed, it have moderate weight, high strength, durability and beautiful appearance. Plug type assembly, easy to disassemble, reliable locking, single assembly design, no misoperation.
