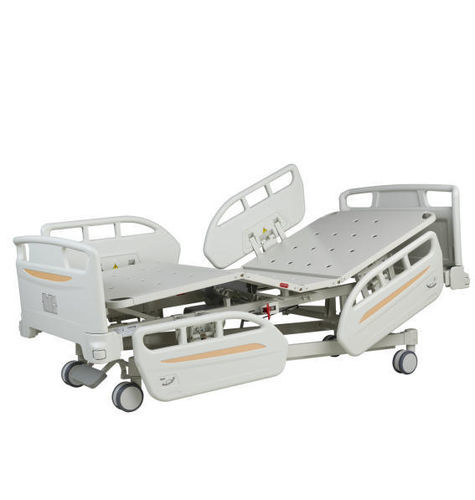

Emergency bed DA-2 Type C5
electricfoldingon casters

emergency bed
emergency bed
Add to favorites
Compare this product


on casters
Number of sections

565 mm
(22 in)


990 mm
(39 in)


2,070 mm
(81.5 in)

Weight capacity

200 kg
(440.9 lb)


Five function electric bed C5 1, Safe working load: ≥200kg 2, The back board folding angle: ≥ 70 ° 3, The thigh board folding angle: ≥ 30° 4.TR/ATR:≥ 0-20°±2°; 5, The four motors automatically realize various positions. The motors are selected from internationally renowned brand Timotion, which are safe and noiseless. 6, Two control methods, operation handle control and guardrail built-in button operation, control handle is clear and easy to operate. 7, Side rail: 1),Two side rail in each side of bed. 2),It can be automatically locked when raising, and each guardrail can bear more than 50KG. 3), Guardrail safety switch design, placed under the guardrail to avoid misuse of the patient; 4), Equipped with gas spring for easy operation. 5), The steel structure of the guardrail base is welded on the bed to ensure safety. 6), The 4-pieces guardrail has angle indicator that allows the caregiver to quickly and easily adjust the backrest angle and TR/ATR angle of the bed. 8, Casters 1), The four casters use 125mm center control one. 2), Steel structure, precision ball bearings are placed in the rotating head and the caster. 3),Braking system: Pedal-type synchronous braking arms on both sides of the bed. 9, Shank board can be adjusted manually by simple steel support for convenience position. 10, At the 4 corners of the bed, there is an diameter HDPE anti-collision wheel which intergated on H/F board. 11, There are 1 hook in each side for drainage bag. 12, It equipped with manual CPR for emergency treatment(optional). 13.Wooden packing size:2070*990*565mm(1pcs/box) Gross weight: 195Kg Volume:1.16m3
