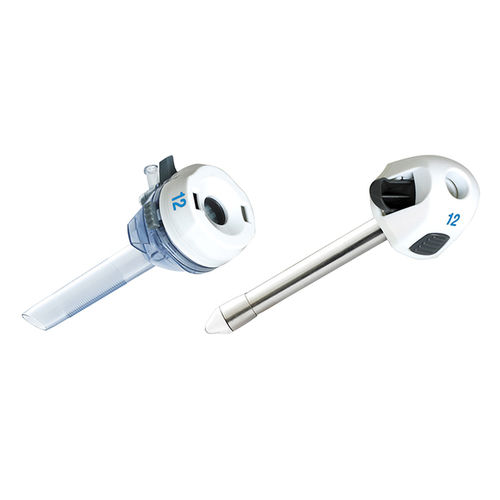

Laparoscopic trocar PC5 series

rounded tipwith insufflation tapwith sleeve

Product overview
Disposable laparoscopic trocar set PC series provides sterile single-use puncture sleeves and cores designed for establishing laparoscopic access and maintaining insufflation during minimally invasive abdominal or thoracic surgery. Integrated sealing systems and valves facilitate instrument passage while limiting gas leakage.

Application
Clinically indicated for laparoscopic procedures to create and maintain a surgical access channel.

Key benefits

• Simplifying the puncture process: Sharp trocars and cannulas enable controlled entry; single-use design ensures a sterile, sharp instrument for each procedure, reducing infection risk.
• Reducing the risk of complications: Safety features such as anti-slip handles and ergonomic grips support precise control and reduce accidental tissue injury.
• Enhanced efficiency and convenience: Disposable components remove the need for re-sterilization; variants with integrated trocars and valves streamline trocar insertion and instrument exchange, shortening procedure time.
• Improved patient outcomes: Accurate access and reduced complications minimise tissue trauma and postoperative pain, supporting faster recovery.

How to use

• 1. Use aseptic technique to open the sterile package; avoid dropping the instrument into the sterile field.
• 2. Puncture core and sleeve are packaged separately. Assemble by inserting the core into the sleeve until it locks. Ensure the choke valve is closed prior to use (perpendicular to the gas port).
• 3. Make a skin incision large enough for the trocar to prevent excessive insertion force.
• 4. Insert the trocar through the incision, rotating 30°–90° while applying gentle, rhythmic pressure.
• 5. After entry into the abdominal or thoracic cavity, depress the core release to remove the core and leave the sleeve in place; the inner sealing layer closes automatically.
• 6. Connect insufflation tubing to the gas injection valve on the sleeve and open the choke valve to insufflate; the sealing system remains closed when no instrument is present.
• 7. To remove a specimen, press the middle body lock, lift the sealing cap to extract the specimen, then replace the cap until the lock audibly engages.
• 8. At the end of the procedure, remove the insufflation tube, open the choke valve and release gas from the cavity.

Package specifications
PC5/5M - Contains 2 × 5M puncture sleeves; 1 × 5M puncture core.
PC5/10M - Contains 1 × 5M puncture sleeve, 1 × 10M puncture sleeve; 1 × 5M puncture core, 1 × 10M puncture core.
PC5/12M - Contains 1 × 5M puncture sleeve, 1 × 12M puncture sleeve; 1 × 5M puncture core, 1 × 12M puncture core.
PC5/5/10M - Contains 2 × 5M puncture sleeves, 1 × 10M puncture sleeve; 1 × 5M puncture core, 1 × 10M puncture core.
PC5/5/12M - Contains 2 × 5M puncture sleeves, 1 × 12M puncture sleeve; 1 × 5M puncture core, 1 × 12M puncture core.
PC5/10/10M - Contains 1 × 5M puncture cannula, 2 × 10M puncture cannula; 1 × 5M puncture core, 1 × 10M puncture core.
PC5/12/12M - Contains 1 × 5M puncture cannula, 2 × 12M puncture cannula; 1 × 5M puncture core, 1 × 12M puncture core.
PC5/10/12M - Contains 1 × 5M puncture cannula, 1 × 10M puncture cannula, 1 × 12M puncture cannula; 1 × 5M puncture core, 1 × 10M puncture core, 1 × 12M puncture core.
PC5/5/10/10M - Contains 2 × 5M puncture sleeves, 2 × 10M puncture sleeves; 1 × 5M puncture core, 1 × 10M puncture core.
PC5/5/12/12M - Contains 2 × 5M puncture sleeves, 2 × 12M puncture sleeves; 1 × 5M puncture core, 1 × 12M puncture core.
PC5/5/10/12M - Contains 2 × 5M puncture cannula, 1 × 10M puncture cannula, 1 × 12M puncture cannula; 1 × 5M puncture core, 1 × 10M puncture core, 1 × 12M puncture core.

Additional information
Sets typically include integrated sealing systems and valves to maintain insufflation and permit instrument passage with minimal gas leakage. Ergonomic and safety elements (anti-slip handles, locking mechanisms, sealing caps) support secure instrument exchange and specimen retrieval.

Technical specifications

• Single-use disposable design to ensure sterility and a sharp instrument for each procedure.
• Available package configurations: combinations of 5M, 10M and 12M puncture sleeves and cores (see package specifications).
• Features: puncture core and sleeve assembly with locking mechanism; choke valve for gas control; inner sealing layer that auto-closes when the core is withdrawn; middle body lock and sealing cap for specimen removal.
• Designed for laparoscopic access to abdominal or thoracic cavities; compatible with standard insufflation tubing connection to gas injection valve.
• Ergonomic elements: anti-slip handles, ergonomic grips, push-button core release and locking indicators.
