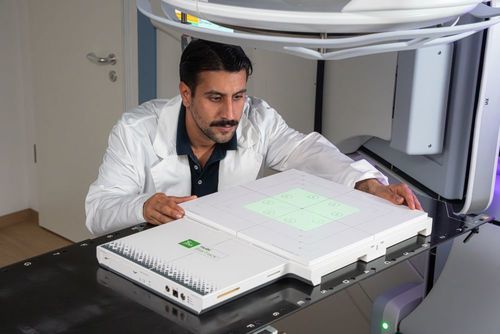

X-ray QA dosimeter myQA StarTrack³

Overview
myQA StarTrack³ is a high‑definition 2D detector array for linac Machine QA. It provides a single‑setup solution to capture comprehensive photon and electron beam data across a 34 × 34 cm active area for commissioning, monthly and annual QA tasks without warm‑up or complex infrastructure.

Key benefits

• Precision: High‑definition ion chamber array delivering water‑tank comparable accuracy (±0.5%) for output and profile measurements.
• Coverage: Full field coverage (≥30×30 cm including tails) enabling real‑time beam steering, fast verification and trending.
• Efficiency: Single quick measurement captures output, beam quality (TPR20,10 / R50), flatness, symmetry, field size and penumbra — monthly QA workflows completed in minutes including setup.

Features

• Single detector setup: from placement to verified measurement in under five minutes.
• Wireless data transfer for cable‑free workflows; optional Ethernet LAN available.
• Rechargeable battery with charger included; 9V power supply option for alternative power.
• Laser markers for accurate and repeatable alignment.
• Integrated energy verification plates for photon (TPR20,10) and electron (R50) checks in under a minute.
• High spatial resolution: 2.5 mm resolution at field edges; 5.0 mm center‑to‑center on primary axes; 7.1 mm on diagonals for precise profile and penumbra assessment.

At a glance — highlighted capabilities

• Cutouts for secure handling and transport.
• Light field check with quantitative results available in the software.
• Wireless data exchange; optional Ethernet for secure wired transfer.
• Rechargeable battery to enable rapid setups between machines.
• Laser markers for simple alignment procedure.
• Active measurement area up to 34 × 34 cm²; integrated energy check chambers for photons and electrons.
• High resolution sensing: 509 ionization chambers (9 central chambers); 5 mm c‑c on primary axes; 7.1 mm on diagonals.
• myQA StarTrack³ web‑based application: centralized, web repository for trendable QA data with built‑in Machine QA tests (automatic energy validation, light/radiation field coincidence, output constancy, profile constancy). Supports relative, counts or absolute analysis modes.
• Energy verification via dedicated photon and electron plates (TPR20,10 and R50) ensuring consistency across measurements.

Detector array — technical data (table)
Field size / active measurement area (cm): 34 x 34
Number of ion chambers: 509
Resolution (center‑center distance) (mm): 5.0 (main axes); 2.5 (field edges); 7.1 (diagonals)
Detector / sensor type: Vented parallel plate ion chamber
Detector size / chamber size (mm): 3.2 × 2.0
Total chamber volume (mm³): 16.08
Outer dimensions [LxWxH] [mm]: 666 x 430 x 40
Array weight (kg): 9.8 (including battery)
Supported energies: Photons (FF/FFF) [MV]: 6/6 FFF, 10/10 FFF, 15, 18; Electrons (MeV): 6, 9, 12, 15, 18
Power: Rechargeable battery incl. battery charger; 9V power supply option
Data transfer: Wireless or Ethernet

myQA StarTrack³ web‑based application — technical data (table)
Server installation (recommended): Deployment on physical or virtual servers
Supported server OS: Windows Server 2022
HW resources (server): CPU: 4 cores / 2 GHz recommended
Client recommended OS: Windows 11; Personal computer installation: Windows 11, CPU: 2 cores / 2 GHz recommended
Minimum hardware requirements: Disk space: 0.5 MB/measurement (200 GB recommended typical); RAM: 16 GB recommended; MSSQL Server 2022 required; Network: 10/100/1000 Base T
Supported browsers (application access): Microsoft Edge (v140+), Google Chrome (v140+), Mozilla Firefox (v143+); Recommended display: 1920×1080, 100% scaling

Notes
Technical data are subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.

Technical specifications

• Model: myQA StarTrack³
• Active measurement area: 34 x 34 cm
• Number of ion chambers: 509
• Detector resolution: 5.0 mm (main axes), 2.5 mm (field edges), 7.1 mm (diagonals)
• Detector type: Vented parallel plate ion chambers
• Chamber dimensions: 3.2 × 2.0 mm; total chamber volume 16.08 mm³
• Array dimensions: 666 × 430 × 40 mm; weight 9.8 kg (including battery)
• Supported photon energies: 6/6 FFF, 10/10 FFF, 15, 18 MV; electron energies: 6, 9, 12, 15, 18 MeV
• Power: Rechargeable battery with charger; 9V power supply option
• Data transfer: Wireless (default) or Ethernet LAN
• Software: myQA StarTrack³ web‑based application (server or PC install; MSSQL Server 2022 required)
