Radiation therapy test phantom WP1D
general purpose

radiation therapy test phantom
radiation therapy test phantom
radiation therapy test phantom
radiation therapy test phantom
Add to favorites
Compare this product


Characteristics

Type of calibration
for radiation therapy
Area of the body
general purpose

Description

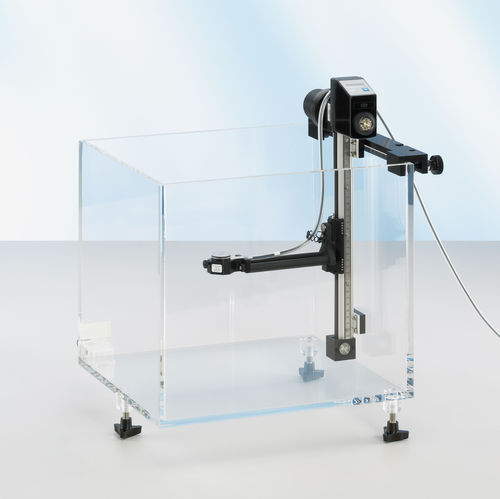

1D stand-alone water phantom for absolute dose measurements WP1D Water Phantom Manual water phantom: measurement depth can be adjusted manually Motorised water phantom with interface to CU500E / MCU Motorised water phantom including Smart Control Unit (SCU) Description The WP1D is a 1D stand-alone water phantom for absolute dose measurements according to TG-51 and IAEA TRS-398 dosimetry protocols. Three different types are available: Motorized water phantom with interface to CU500E / MCU: connected to the CU500E or the MCU respectively for motorized adjustment of the measurement depth. Manual water phantom: measurement depth can be adjusted manually in 0.1 mm steps and read out on the incremental encoder with integrated display. Motorized water phantom including Smart Control Unit (SCU): includes SCU with which the measurement depth can be adjusted in steps of 0.1-100 mm. Up to 8 data sets (e.g. Linacs) of 62 measurement depths each, can be preset and stored in the SCU.
