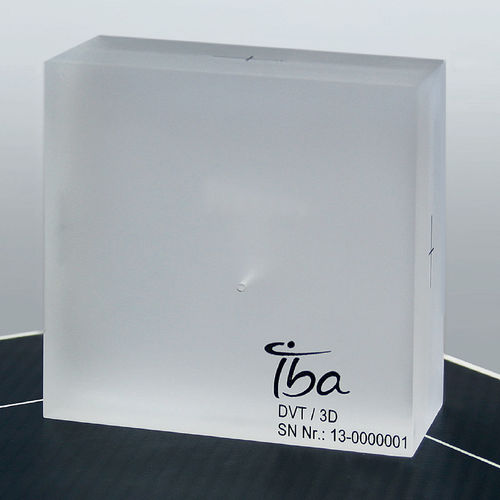

CT scan test phantom DVT-3D

general purpose

Test Device for 3D Image Quality of DVT Digital Volume Tomography Test Device for 3D Image Quality of DVT Systems -Choose out of a large range of accessories -Easy test device setup in the isocenter (optional tripod) -Verification image of the DVT3D with test patterns for digital volume tomography -Complies to DIN 6868-150:2013-06 test requirements Unique solution Easy and precise positioning of the test device on a tripod stand, without image quality influences of the patient couch Laser Markers Crosshair marker for comfortable setup of the test device at isocenter 3D image quality checks with contrast / spatial resolution, isocenter coincidence, noise and uniformity. DVT3D detailed objects Dimensions: 120 x 120 x 60 mm; Tripod thread: M6 Complete Solution Cases Complete solution case for 3D and 2D quality assurance for experts and acceptance inspection -Multimeter MagicMaXUniversal -Primus A; 2D image quality test device -3 PMMA slabs à 30 x 30 x 10 cm (in separate case) -DVT3D test device for 3D image quality -Tripod for easy positioning of the DVT3D -Mounting frame
