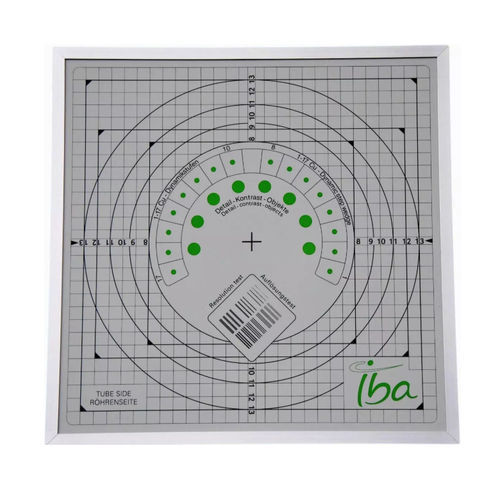

Fluoroscopy test phantom Primus A
general purpose

fluoroscopy test phantom
fluoroscopy test phantom
fluoroscopy test phantom
fluoroscopy test phantom
fluoroscopy test phantom
fluoroscopy test phantom
fluoroscopy test phantom
Add to favorites
Compare this product


Characteristics

Type of calibration
for fluoroscopy
Area of the body
general purpose

Description

Test Device for Quality Checks at Digital and Conventional Radiographic and Fluoroscopic X-ray Units. Advanced design for multiple test parameters For quality checks at digital & conventional radiographic and fluoroscopic X-ray units The test device Primus A is applicable for expert inspections, acceptance tests and constancy tests according to DIN 6868-150, 2013 and DIN 6868-4 Universal test device for your digital and conventional radiographic and fluoroscopic X-ray units Integrated grid design for easy testing of geometric distortion and smart review of light-/beam field alignment Low and high contrast resolution Two integrated areas for verification of the dynamic and low contrast sensitivity Intuitive workflow Unique design ensuring easy application Test the following parameters with Primus A: Spatial resolution Contrast resolution Alignment of light and X-ray field Geometrical distortion Image scale Direction of the tube axis Dynamic step wedge 16 detail contrast objects, diameter: 4 mm, depth: 2.5 mm in PMMA (evaluation of low contrast resolution in each step of the copper step wedge) Detail contrast objects with 8 mm diameter Line cross to mark center Unstructured inner area High contrast resolution tests (Resolution: 0,6 – 5 LP/mm) Radiographically visible numbers for indication of the dynamic steps
