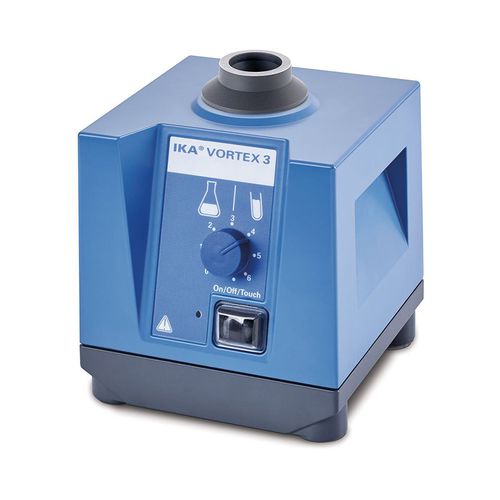

vortex laboratory shaker / analog / compact / for tubes
Vortex 3

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
vortex laboratory shaker vortex laboratory shaker - Vortex 3


  • Motion type:


  • Display:


  • Configuration:


  • Other characteristics:

    for tubes

  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 2,500 rpm (15,708 rad.min-1)


Vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation.

Wide speed range, infinitely adjustable
Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately
Attachments securely click onto appliance in any position
Special strap (VG 3.36, page 51) ensures easy handling of round/Erlenmeyer flasks
Sturdy metal zinc die cast casing
Compact design
Short-time operation activated by pressing attachment (touch function)
Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)
Eccentric with ball bearings
Suitable for continuous operation with low self heating thanks to self ventilation of motor

Shaking movement: orbital
Orbital diameter: 4 mm
Infinitely adjustable speed range: 500 - 2.500 rpm

Technical Data
Type of movementorbital
Shaker diameter4 mm
Permissible shaking weight (incl. attachment)0.4 kg
Motor rating input58 W
Motor rating output10 W
Permissible ON time100 %
Speed min (adjustable)500 rpm
Speed range0 - 2500 rpm
Speed displaynone
Operating modecontinuous operation
Touch functionyes
Working with microtiter platesyes
Number of microtiter plates1
Dimensions (W x H x D)127 x 136 x 149 mm
Weight4.5 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage200 - 240 / 115 / 100 V
Frequency50/60 Hz
Power input60 W
