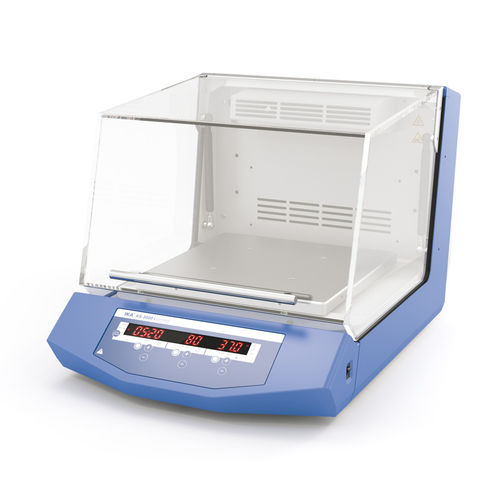

Compact laboratory incubator KS 3000 control series

1-doorshaking

KS 3000 i and ic control Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment. • Large LED display for speed and time settings • Controls with antimicrobial coating for reduction of bacteria • Integrated PID temperature control (use of two PT 1000 temperature sensors) • Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60 • Electronic temperature and speed control • Electronic timer switch: 0 - 999 h (set by the minute or by the hour) • ic control: Optional built-in cooler for connection to an external cooling unit e.g. RC 2 basic / control • Unit switches off automatically if disturbed • Unit stops automatically when hood is lifted • Collecting tray with drain hose on rear of unit • Simple operation • All functions can be controlled and documented with labworldsoft® • Attachements are not included in delivery, please order seperatly Technical Data Type of movement: orbital Shaker diameter: 20 mm Permissible shaking weight (incl. attachment): 7.5 kg Motor rating input: 45 W Motor rating output: 10 W Permissible ON time: 100% Speed min (adjustable): 10 rpm Speed range: 10 - 500 rpm Speed display: LED Speed deviation: 1% Speed control: 1 RPM steps Timer display: 7 segment LED Time setting min.: 1 s Time setting range: 1 - 59940 min Operating mode: timer and continuous operation Heating temperature range: room temp. +5° - 80 °C Heat output: 1000 W Set temperature resolution: 0.1 ±K Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C): 0.5 ±K Temperature display: yes Temp. stability (0,2l H2O; RT 25°C, T=37°C): 0.1 ±K Operating area inner chamber: 330 x 330 x 258 mm
