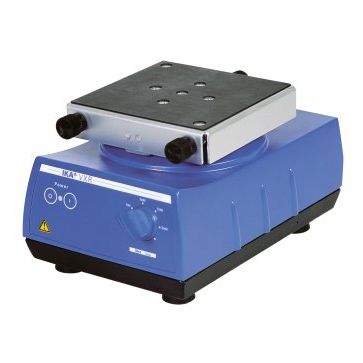

orbital laboratory shaker / analog / compact
VXR basic Vibrax®

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
orbital laboratory shaker / analog / compact orbital laboratory shaker / analog / compact - VXR basic Vibrax®


  • Motion type:


  • Display:


  • Configuration:


  • Rotational speed:

    Min.: 100 rpm (628 rad.min-1)

    Max.: 2,200 rpm (13,823 rad.min-1)


Optoelectronically controlled small shaker with a very wide speed range (0 - 2200 rpm).
Suitable for continuous operation
New design and improved drive system
Circular shaking motions
Slow speeds are well maintained
Attachments are interchangeable

Technical Data
Type of movementorbital
Shaker diameter4 mm
Permissible shaking weight (incl. attachment)2 kg
Motor rating input35 W
Motor rating output13.2 W
Permissible ON time100 %
Speed min (adjustable)100 rpm
Speed range0 - 2200 rpm
Speed displayscale
Operating modecontinuous operation
Dimensions (W x H x D)157 x 130 x 247 mm
Weight6.1 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage220 - 240 / 100 - 120 V
Frequency50/60 Hz
Power input45 W
