tilting laboratory shaker / roller / digital / benchtop
ROLLER 6 digital

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
tilting laboratory shaker tilting laboratory shaker - ROLLER 6 digital
{{requestButtons}}

Characteristics

  • Motion type:

    tilting, roller

  • Display:

    digital

  • Configuration:

    benchtop

  • Rotational speed:

    Max.: 80 rpm (503 rad.min-1)

    Min.: 0 rpm (0 rad.min-1)

Description

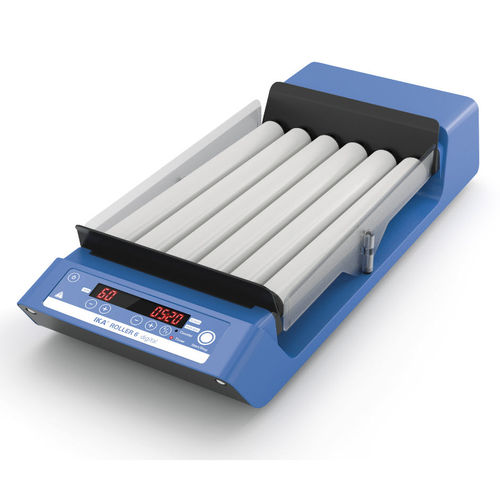

Digital roller shaker with 6 rolls provides smooth rocking and rolling action at infinitely adjustable speeds. Used for mixing blood samples, solid and liquid suspensions and viscous samples. The unit can be used with all conventional tubes and cylindrical bottles. Easily removable attachments provide for quick cleaning in case of sample spills.

Timer: Countdown, adjustable from 1 s to 99h 59min
Counter: Display of shaking time
Error Code Display
Usable at 4 to 50 °C in incubators
Suitable for continuous operation
Removable rolls enable shaking of larger tubes
Easy operation with keypad
Shaking diameter: 24,5 mm (height)
Speed range: 5 - 80 rpm

Technical Data
Type of movementrolling
Permissible ON time100 %
Speed min (adjustable)5 rpm
Speed range0 - 80 rpm
Speed display7 segment LED
Speed control1 RPM steps
Timeryes
Timer display7 segment LED
Time setting min. 1 s
Time setting max.5999 min
Operating modetimer and continuous operation
Rolls, number6
Rolls, Ø32 mm
Rolls, length327 mm
Working area length350 mm
Rolls, luffing angle fixed3 °
Rolls, max stroke at roll end16 mm
Rolls, changeable, removableyes
Dimensions (W x H x D)240 x 115 x 545 mm
Weight4 kg
Permissible ambient temperature4 - 50 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage100 - 240 V
Frequency50/60 Hz
Power input24 W
DC Voltage24 V=
Current consumption1000 mA
