orbital laboratory shaker / digital / compact
KS 501 digital

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product

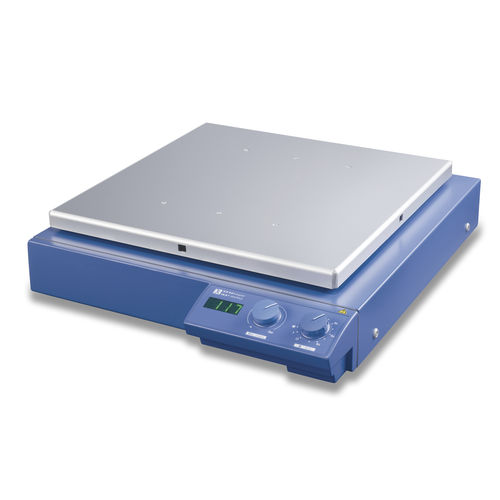

orbital laboratory shaker orbital laboratory shaker - KS 501 digital


  • Motion type:


  • Display:


  • Configuration:


  • Rotational speed:

    Min.: 0 rpm (0 rad.min-1)

    Max.: 300 rpm (1,885 rad.min-1)


Low profile laboratory orbital shaker with large mounting surface and load capacity of up to 15 kg.

Infinitely variable speed control from 0-300 rpm
Digital display
Orbital diameter 30 mm
Ideal for vessels with a volume of more than 250 ml, e.g. round flasks, Erlenmeyer flasks, culture flasks and bottles
Ideal for biological and microbiological growth tests and for production of stock solutions
Continuous operation (endless) even under extreme loads
Timer function
Attachments are not included, please order separately
Integrated USB and RS 232 interface

Technical Data
Type of movementorbital
Shaker diameter30 mm
Permissible shaking weight (incl. attachment)15 kg
Motor rating input70 W
Motor rating output19 W
Permissible ON time100 %
Speed range0 - 300 rpm
Speed display7 segment LED
Timer displayscale
Time setting range1 - 55 min
Operating modetimer and continuous operation
Dimensions (W x H x D)505 x 120 x 585 mm
Weight26 kg
Permissible ambient temperature5 - 50 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
RS 232 interfaceyes
USB interfaceyes
Voltage230 / 115 / 100 V
Frequency50/60 Hz
Power input74 W
