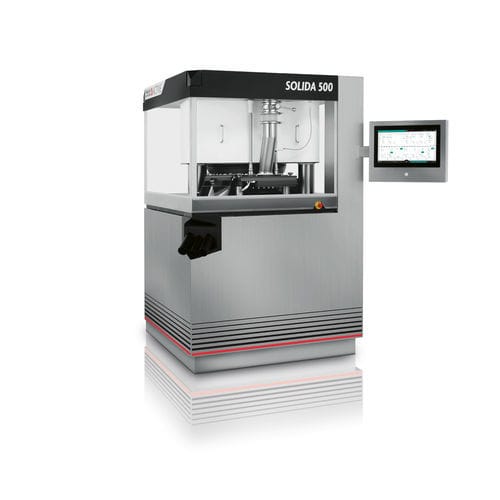

Press for the pharmaceutical industry SOLIDA series

for tabletsfor productionfor large-scale production

Overview
SOLIDA is a rotary tablet press engineered for pharmaceutical tableting operations, available in Solida 300 and Solida 500 configurations. The machine supports multiple tooling standards and tablet diameters, and is designed for high-speed, repeatable compression performance suitable for integrated, digitalised production lines.

Key highlights

• Pharma 4.0 ready: designed for integration into digitalised production environments with data exchange and continuous improvement capabilities.
• Operator-friendly HMI: guided procedures via MAX HMI reduce setup time and human error.
• High compression capability: mechanical structure supports pre-compression and main compression forces up to 100 kN.
• Modular and upgradeable: architecture enables efficient functional upgrades and adaptation to evolving production needs.

Production plant
Production plant: IMA Active

Machine media and gallery
Includes multiple high-resolution images showing general layout, turret, die feeder, HMI, exit chute and compression area. A machine video trailer is available showing the machine in operation.

Technical data (summary table)
Turret Design | Tooling Type | Max Tablet Ø | Solida 300 (Stations / Max speed Tab/h) | Solida 500 (Stations / Max speed Tab/h)
Die-Table | EU/TSM-D or EU-441 | 25 mm | 27-M / 194,400 | 40-M / 288,000
Die-Table | EU/TSM-B B-dies | 16 mm | 33-M / 237,600 | 49-M / 352,000
Die-Table | EU/TSM-B BB-dies | 13 mm | 41-M / 295,200 | 60-M / 432,000
Die-Table | IMA 8 | 11 mm | 55-M / 396,000 | 80-M / 576,000
Segments | EU/TSM-D | 25 mm | 33-S / 237,600 | 48-S / 345,600
Segments | EU-441 | 25 mm | 30-S / 216,000 | 44-S / 316,800
Segments | EU/TSM-B | 16 mm | 42-S / 302,400 | 64-S / 460,800
Segments | IMA 8 | 11 mm | 54-S / 388,800 | 80-S / 576,000

Applications & design notes
SOLIDA is intended for pharmaceutical manufacturers requiring consistent compression across a variety of products and tablet formats. The machine architecture supports different tooling standards, wide tablet diameter ranges and high-speed configurations, and is engineered for integration with plant-level automation and digital systems.

Technical features / specifications

• Compression capability: structure supports pre-compression and main compression forces up to 100 kN.
• HMI: guided operator procedures via MAX HMI to reduce setup time and human errors.
• Tooling compatibility: supports EU/TSM-D, EU-441, EU/TSM-B variants and IMA tooling (IMA 8) for die-table and segment turrets.
• Maximum tablet diameter: up to 25 mm depending on tooling.
• Production speed configurations: multiple peak outputs depending on tooling and station configuration (see technical table above for Solida 300 and Solida 500 values).
• Modularity: future-proof design allowing efficient functional upgrades and adaptation to changing production needs.
• Integration: built for straightforward integration into Pharma 4.0 and digitalised production environments.
