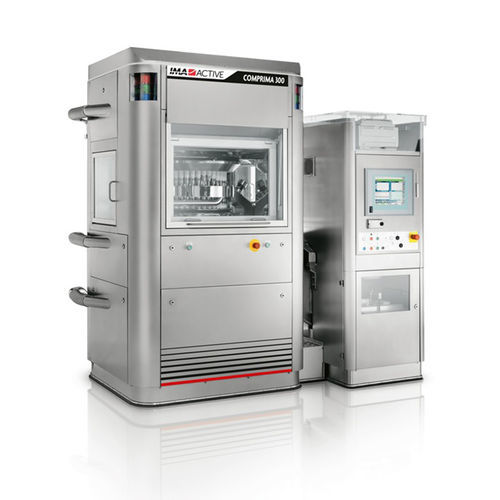

Press for the pharmaceutical industry COMPRIMA series

for tabletsfor productionfor large-scale production

OverviewDesigned around a highly innovative compression system and launched in 1995, COMPRIMA is a tableting solution delivering yields up to 99.5% while maintaining tablet quality. It uses a centrifugal powder-feeding concept generated by turret rotation; centrifugal die-filling ensures accurate die filling without powder segregation and supports high production speeds including oblong and shaped tablets.

Key features

• Centrifugal die-filling for precise powder feeding and high-speed production
• Processing area isolation via seals and bellows to prevent powder contamination
• Clean-In-Place (CIP) system for fully automatic, validatable cleaning cycles
• Optional high-containment isolation (OEL 5) with glove ports and negative pressure

Machine highlights

• Feeding accuracy: Specially shaped radial channels provide consistent, closed-path powder handling to minimise product loss.
• Zero contamination: Sealed processing area with bellows and seals to reduce contamination risk.
• Cleaning cycle: Fully automatic, validatable CIP for efficient cleaning between batches.
• Containment options: Available high-containment configuration (OEL 5) with glove ports and negative pressure.

Media / Gallery notes

• Machine video trailer available (product demo)
• Gallery images: processing area, compression turret, size changer, tooling parts and upper punch shaft to illustrate machine layout

Technical data (table)COMPRIMA technical data
Model | COMPRIMA 150 | COMPRIMA 250 | COMPRIMA 300
Maximum output (tablets/hour) | 150,000 | 250,000 | 300,000
Maximum turret speed (RPM) | 138 (all models)
Number of stations | 18 | 30 | 36
Round tablet dimensions (mm) | 5–17 (150/250) | 5–16 (300)
Oblong tablet dimensions (mm) | 5–21.5 (150/250) | 5–17 (300)
Compression force (kN) | Up to 80
Standard voltage | 400 V (±10%) – 50 Hz
Maximum installed power | 25 kW (50 Hz) – 27 kW (60 Hz)
Compressed air | 300 l/min at 6 bar
Minimum water delivery | 70 l/min – 3 bar – 60°C
Weight (kg) | approx. 3,400

Technical specifications

• Series name: COMPRIMA
• Models: COMPRIMA 150, COMPRIMA 250, COMPRIMA 300
• Maximum output: up to 300,000 tablets/hour (model dependent)
• Maximum turret speed: 138 RPM
• Number of stations: 18 / 30 / 36 (model dependent)
• Round tablet size range: 5–17 mm (150/250), 5–16 mm (300)
• Oblong tablet size range: up to 21.5 mm (150/250), up to 17 mm (300)
• Compression force: up to 80 kN
• Standard voltage: 400 V (±10%) – 50 Hz
• Maximum installed power: 25 kW (50 Hz) / 27 kW (60 Hz)
• Compressed air requirement: 300 l/min at 6 bar
• Minimum water delivery for services: 70 l/min – 3 bar – 60°C
• Typical machine weight: approx. 3,400 kg
• Containment & safety: sealed doors, negative pressure processing area; optional high-containment (OEL 5) with glove ports
• Cleaning: Clean-In-Place (CIP) fully automatic and validatable cleaning cycle
