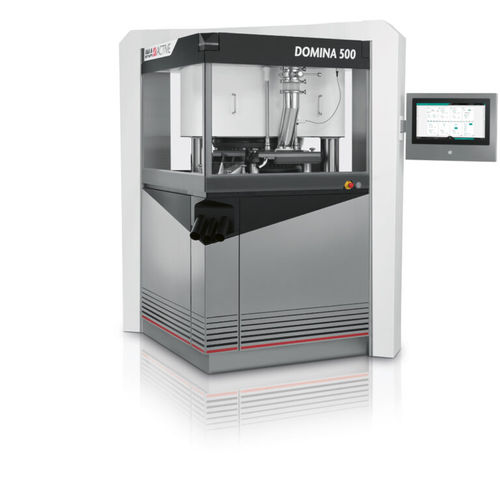

Press for the pharmaceutical industry DOMINA series

for clean roomsfor productioncompact

Product overview
DOMINA is a modular tablet compression platform designed for pharmaceutical production. The platform uses a plug-and-play architecture with removable, interchangeable functional blocks to enable rapid reconfiguration of machine layout and capability. It integrates brushless motorisation, advanced machine-learning routines for process parameter self-adjustment, and a compact footprint to facilitate installation in existing production lines.

Highlights

• Modular plug-and-play platform for fast changeover between machine configurations
• Brushless motorisation for energy-efficient drive and precise motion control
• Machine-learning functions for adaptive process tuning, reducing waste and improving consistency
• Compact footprint for integration into existing lines and cleanroom layouts
• Robust mechanical concept derived from Prexima design

Key technology & functions

• Interchangeable functional blocks to configure the machine per product and process needs
• Independent paddle motorisation enabling fine tuning of product handling and fill control
• Dynamicam filling cam covering the full filling range for enhanced filling precision
• Connectivity and architecture supporting Pharma 4.0 integration and production data flow
• Design provisions for single rejection of out-of-spec products and maximised uptime

Dynamicam
Dynamicam is a dedicated filling cam that covers the entire filling range. Coupled with independent paddle motorisation, it enables product-centric tuning and improved filling accuracy across formulations and tablet sizes.

Events & demonstrations
DOMINA has been presented in international roadshows and live demonstrations highlighting modularity, data integrity, compression stability and Pharma 4.0 connectivity. Demonstrations show reconfiguration speed, process traceability and integration scenarios.

Technical tables (turret & tooling standards)
TURRET & TOOLING STANDARDS | Domina 300 | Domina 500
Turret Design — Tooling Type — Max Tablet Ø — Compression Stations — Max Speed (Domina 300 / Domina 500)
Die-table — EU/TSM-D or EU-441 — 25 mm — 27-M — 194,400 Tab/h — 40-M — 288,000 Tab/h
Die-table — EU/TSM-B (B-dies) — 16 mm — 33-M — 237,600 Tab/h — 49-M — 352,000 Tab/h
Die-table — EU/TSM-B (BB-dies) — 13 mm — 41-M — 295,200 Tab/h — 60-M — 432,000 Tab/h
Die-table — IMA 8 — 11 mm — 55-M — 396,000 Tab/h — 80-M — 576,000 Tab/h
Segments — EU/TSM-D — 25 mm — 33-S — 237,600 Tab/h — 48-S — 345,600 Tab/h
Segments — EU-441 — 25 mm — 30-S — 216,000 Tab/h — 44-S — 316,800 Tab/h
Segments — EU/TSM-B — 16 mm — 42-S — 302,400 Tab/h — 64-S — 460,800 Tab/h
Segments — IMA 8 — 11 mm — 54-S — 388,800 Tab/h — 80-S — 576,000 Tab/h

Note
Values above correspond to turret and tooling standards and indicate typical maximum tablet diameters, number of compression stations and peak theoretical speeds for Domina 300 and Domina 500 configurations.
