Press for the pharmaceutical industry PREXIMA

for tabletsR&Dfor production

Machine overview
Powered by IMA Active’s sector expertise and designed with Italian engineering, PREXIMA is a family of tablet presses covering R&D, medium and high-speed production. The platform keeps tablet weight and hardness uniform even with challenging powders, supports waste reduction strategies and includes machine-learning functions for automatic process-parameter adjustment and single-product rejection.

Highlights

• Process area isolation: Processing area isolated using purpose-designed seals and protections to limit contamination and simplify cleaning.
• Excellent accessibility: Full access for inspection, maintenance and cleaning to reduce downtime.
• Quick turret removal: Fast turret extraction supported by MAX HMI step-by-step guidance to speed up changeover and training.
• Sturdy structure: Frame and components sized to withstand pre-compression and main compression forces up to 100 kN.
• Optimised lubrication: Designed to prevent oil dripping on upper punches and avoid black spots on tablets.
• Low noise level: Sound-proof panels and anti-vibration feet keep noise below 75 dB; vibration minimized after anechoic-chamber testing.

Machine versions

• PREXIMA 80: Intended for R&D and small-scale production. R&D configurations include multiple tooling options to characterise tablets. Turret accepts four B stations and four D stations. Optionally available with IMAGO R&D software. Equivalent high-containment version available for OEB 5 installations.

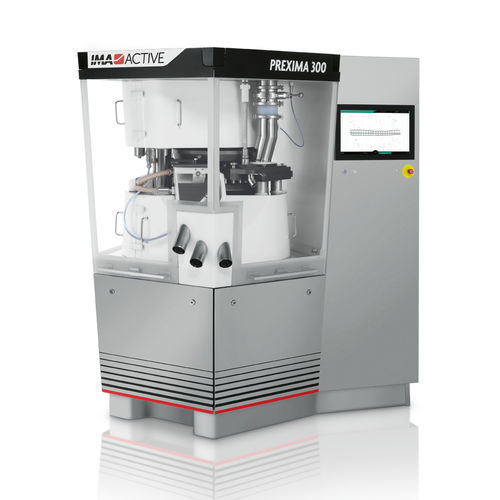

• PREXIMA 300: Single-sided press for medium production. Features excellent accessibility, quick turret removal via a rotating arm inside the mechanical compartment and an integrated electrical cabinet for simpler installation. Suitable for tablets up to 39 mm diameter.
• PREXIMA 800: Double-sided press for high-speed production and bilayer tableting. Full access around the machine; four columns connected by cast-iron structures support four compression rollers on both sides to ensure force transfer, compression stability and high-speed operation.

Media
Gallery and media include multiple high-resolution images of PREXIMA models and a machine video trailer. Media items and descriptive captions are available on the product page.

Technical specifications

• PREXIMA 80 technical data:
  Turret Design | Tooling Type | Max Tablet Ø | Number of press stations | Maximum output (Tab/h)
  Die-Table
  EU-D/TSM-D/EU-441 | 25 mm | 13 | 66,300
  EU-B/TSM-B | 16 mm | 16 | 81,600
  EU-B/TSM-B | 13 mm | 19 | 96,900
  EU-B/TSM-B | 11 mm | 19 | 96,900
  IMA 8 | 11 mm | 26 | 132,600
• PREXIMA 300 technical data:
  Turret Design | Tooling Type | Max Tablet Ø | Number of press stations | Maximum output (Tab/h)
  Die-Table
  EU-D/TSM-D/EU-441 | 25 mm | 27 | 194,400
  EU-B/TSM-B | 16 mm | 33 | 237,600
  EU-B/TSM-B | 13 mm | 41 | 295,200
  EU-B/TSM-B | 11 mm | 41 | 396,000
  IMA 8 | 11 mm | 55 | 396,000
  Segments
  EU-D/TSM-D | 25 mm | 33 | 237,600
  EU-441 | 25 mm | 30 | 216,000
  EU-B/TSM-B | 19 mm | 42 | 302,400
  IMA 8 | 11 mm | 54 | 388,800
• PREXIMA 800 technical data:
  Turret Design | Tooling Type | Max Tablet Ø | Number of press stations | Maximum output (Tab/h)
  Die-Table
  EU-D/TSM-D/EU-441 | 25 mm | (see configuration) | (see configuration)
  EU-B/TSM-B | 16 mm | (see configuration) | (see configuration)
  EU-B/TSM-B | 13 mm | 81 | 105, ?
  IMA 8 | 11 mm | 107 | 1,284,000
  Segments
  EU-D/TSM-D | 25 mm | 65 | 702,000
  EU-441 | 25 mm | 60 | 648,000
  EU-B/TSM-B | 19 mm | 85 | 918,000
  IMA 8 | 11 mm | 105 | 1,260,000
