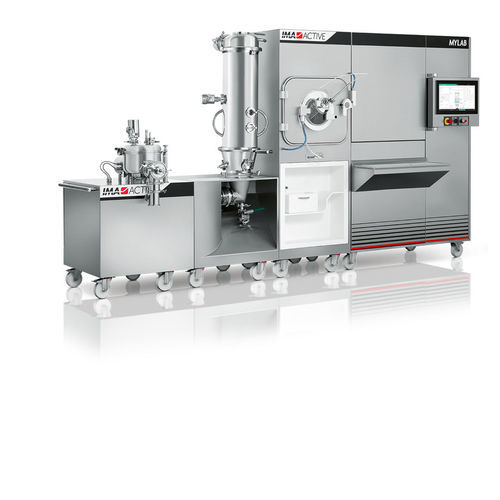

Laboratory granulator MYLAB

for the pharmaceutical industryfor research and developmentR&D

Overview
MYLAB is a compact, modular R&D unit designed for laboratory-scale granulation and coating processes. It enables formulation development and scale-up studies by offering multiple processing technologies in a single, adaptable platform.

Highlights

• Integrated control panel: Control panel built into the MTU, preconfigured to operate seamlessly with both production modules for simplified operation and optimized workflow.
• MAX corporate HMI: MAX corporate HMI developed to improve operator efficiency, responsiveness and ease of learning.
• Interchangeable containers: Modular solution with interchangeable product containers for top- and bottom-spray processes; batch sizes typically from 3 to 6 litres depending on configuration.
• Process versatility: Fluid bed module available with high-shear mixer for dry blending and wet granulation applications.
• Flexible drum options: Coating pan fitted with interchangeable drums (fully perforated and/or wedge and/or solid wall) suitable for batches from 0.5 to 10 litres.
• Enhanced mixing: Coating pan includes welded wave-shaped baffles to ensure optimal mixing of cores.

Technical information
MYLAB technical data
Air flow (Nm³/h): 50 – 300
Air temperature (°C): 20 – 90

Fluid bed module — interchangeable bowls
Top Spray bowl (8 litres): 3 – 6 L
Top Spray bowl (4 litres): 1 – 3 L
Bottom Spray bowl (8 litres): 3 – 6 L

Fluid bed module with high-shear granulator — interchangeable HSG bowls
HSG bowl (7 litres): 2 – 5 L
HSG bowl (3 litres): 0.75 – 2 L

Coating pan module — interchangeable drums
Perforated drum (6 litres): capacity 1.5 – 6 L — pan diameter 460 mm
Perforated drum (2 litres): capacity 0.5 – 2 L — pan diameter 420 mm
Perforated drum (10 litres): capacity 2.5 – 10 L — pan diameter 490 mm
Solid wall drum: capacity 1 – 3 L — pan diameter 455 mm
Edge wired drum: capacity 0.6 – 6 L — pan diameter 460 mm
