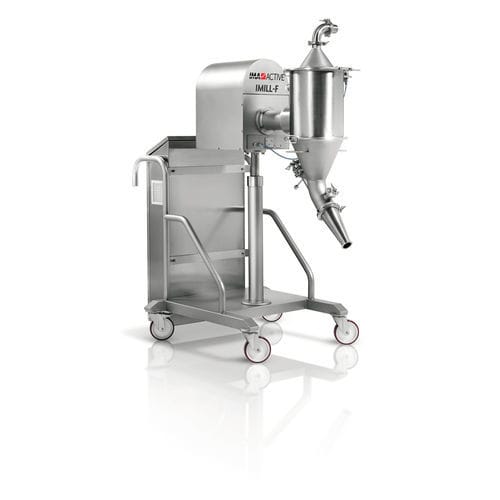

Cone mill IMILL series

centrifugal rotorpharmaceutical industryfor the food industry

Overview
The IMILL Series of cone mills is suitable for wet or dry products processed within the pharmaceutical, food, nutraceutical and cosmetic industries. The required particle size reduction can be achieved by changing the screen and regulating the speed of the impeller. Driven by centrifugal acceleration, IMILL ensures quick calibration milling with minimum noise.

Highlights

• Flexible configurations: available in two configurations (free-standing or integrated) to suit different installation needs.
• Smart feeding: product feeding can be managed either by gravity or by vacuum, ensuring adaptability to various process requirements.
• Versatile calibration: calibrating cones are available in different shapes and dimensions, allowing precise adjustment and optimal product flow.
• Certified safety: an ATEX-certified version is available as an option for use in explosive atmospheres.

Precision particle reduction
The required particle reduction size can be achieved by changing the IMILL screen and regulating the speed of the impeller. Conical screens are available in various shapes and mesh sizes to handle size reduction of wet, dry, soft and hard products.

Technical data (table)
Model: IMILL 5 | IMILL 8 | IMILL 12
Capacity (kg/h)*: 400 | 2,000 | 4,000
Motor (kW): 1.5 | 4.0 | 5.5
Speed range (rpm): 300-2,600 | 300-2,200 | 300-1,500
* Capacity can vary depending on product characteristics, particle size distribution, screen size and installation context.

Dimensions (mm)
A: 180 | 330 | 500
B: 132.5 | 290 | 414
C: 125.8 | 199.7 | 301.5
D: 222 | 369.5 | 420

Characteristics / technical specifications

• Series: IMILL (cone mills for calibration and size reduction).
• Suitable for: pharmaceutical, food, nutraceutical and cosmetic industries.
• Operation principle: centrifugal acceleration with impeller-driven milling.
• Particle size control: changeable screens (conical screens in various shapes and mesh sizes) and adjustable impeller speed.
• Feeding: gravity or vacuum feeding options.
• Configurations: free-standing or integrated installation.
• Safety options: ATEX-certified version available.
• Available models and indicative performance: IMILL 5, IMILL 8, IMILL 12 with capacities, motor powers and speed ranges as listed above.
• Notes: actual capacity depends on product characteristics, particle size distribution, screen size and installation context.
