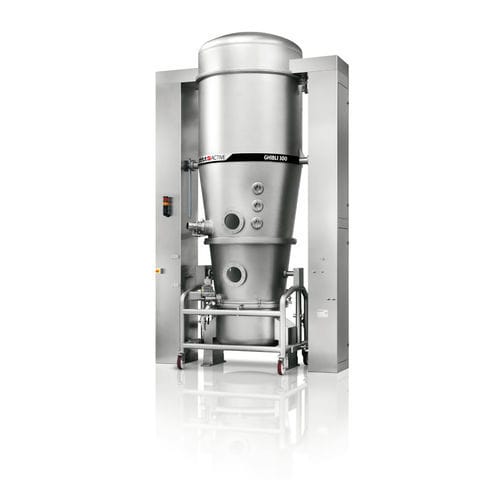

GHIBLI is a fluid bed processor designed for drying, granulation and pellet coating in R&D and production environments. Engineered by IMA Active, the unit features a rotating expansion chamber that provides full accessibility to product filters for inspection and maintenance. Options and designs support high-containment processes and solvent use in compliant facilities.

Main functions

• Drying
• Granulation
• Pellet coating

Highlights

• Easy accessibility: rotating expansion chamber ensures complete access to product filters for inspection and maintenance.
• Safe containment: designed for high-containment environments; options available for solvent-handling compliance.
• Filter types: bag filters, star-pleated filters or stainless-steel cartridge filters.
• ATEX-compliant: available option to ensure safe operation with solvents.
• Product bowl: air distributor screens to maximise product yield; washable in-place and removable for inspection.
• Gravity discharge: optional gravity discharge through the floor.

Engineered for spraying
Supports double-fluid nozzles for granulation and coating. Accurate spraying is achieved by continuous control of liquid flow, volume and pressure.

Machine versions

• Lab Version (MYLAB): laboratory-scale fluid bed processor for R&D, suitable for drying, granulation and pellet coating. Product containers support batch sizes from 2 to 6 litres.

Technical data table (excerpt)
GHIBLI technical data
Model: 25 | 50 | 100 | 150 | 200 | 300 | 400 | 700 | 1000
Recommended batch size (l): 66 | 116 | 320 | 442 | 480 | 668 | 770 | 1,173 | 1,400
Roto Mix inline (l): 60 | 120 | 300 | 600 | 600 | 900 | 900 | 1,200 | 1,500
A (Ø mm): 600 | 700 | 900 | 1,250 | 1,250 | 1,515 | 1,515 | 1,820 | 1,820
B (mm): 555 | 665 | 770 | 970 | 1,060 | 1,245 | 1,250 | 1,465 | 1,780
C (mm): 2,200 | 2,500 | 2,900 | 3,165 | 3,465 | 3,850 | 4,150 | 4,980 | 5,680
D (mm): 1,170 | 1,295 | 1,415 | 1,425 | 1,480 | 1,650 | 1,800 | 2,290 | 2,335
E (mm): 1,460 | 1,460 | 1,585 | 2,530 | 2,530 | 2,785 | 2,785 | 3,270 | 3,270
F vertical rupture disc (mm): 2,535 | 2,840 | 3,300 | 3,600 | 3,900 | 4,370 | 4,680 | 5,780 | 6,480
G horizontal rupture disc (mm): 2,660 | 2,960 | 3,420 | 3,765 | 4,065 | 4,540 | 4,890 | 5,890 | 6,600

Technical specifications

• Manufacturer / brand division: IMA Active (IMA Group).
• Product name / commercial denomination: GHIBLI.
• Primary applications: drying, granulation, pellet coating; suitable for R&D and production plants.
• Containment: designed for high-containment operations; ATEX-compliant options for solvent use.
• Accessibility: rotating expansion chamber for full access to filters for inspection and maintenance.
• Filter options: bag filters, star-pleated filters, stainless-steel cartridge filters; designed for easy inspection and replacement.
• Product bowl: air distributor screens to maximise yield; washable in-place and removable for inspection.
• Discharge options: gravity discharge through the floor available as an option.
• Range of models: multiple sizes (25–1000 examples above) with corresponding batch sizes and dimensions (see technical data excerpt).
• Lab version (MYLAB): laboratory-scale unit for R&D with product containers for 2–6 L batches.
• Spraying / granulation: supports double-fluid nozzles and continuous control of liquid flow, volume and pressure for accurate spraying/coating.
• Typical use environment: production plants and laboratories (IMA Active applications).
