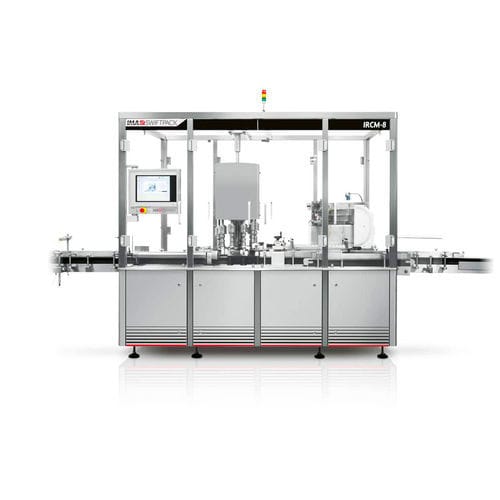

Bottle capping system Capper Series

for industrial applicationsindustrialfor the pharmaceutical industry

Overview
Rotary cappers for counting/dosing and applying screw and press-on closures across a wide range of containers and cap types. Fast, tool-free changeover is combined with a touchscreen HMI that supports product recipe management. Standard screw-cap application uses low-hysteresis magnetic clutches for consistent torque; servo torque control is available as an option. Available as integrated solutions with bowl feeder and in multiple head configurations to suit production needs. Design complies with GMP and uses a table-top layout for easy access and cleaning.

Main functions and capabilities

• Tool-less, fast changeover for reduced downtime
• Touchscreen HMI with recipe management for repeatable set-up
• Screw-cap application with magnetic-clutch torque control (option: servo torque control)
• Handles child-resistant (CRC) and induction-sealed closures
• Integrated cap feeding via bowl feeder on electrically adjustable stand with enclosure for noise reduction
• Adjustable capper turret to accommodate different bottle heights
• Cap inspection options available (vision/physical checks)
• Versatile capping: screw and press-on cap handling

Highlights

• GMP-compliant design and sanitary table-top layout
• Quick, tool-free changeover for production flexibility
• Consistent torque control via magnetic clutches (servo option)
• Multiple head configurations (including 3, 4, 6, 8, 10 heads depending on model)
• Integrated cap feed system with noise reduction enclosure
• Programmable HMI with recipe system for fast product change
• Cap inspection modules available to integrate with line controls

Technical data (summary)
TECHNICAL DATA INTEGRATED ROTARY CAPPER
Production output: Up to 300 bottles/min.*
Cap size: 25 mm to 80 mm
Bottle diameter range: 25 mm to 120 mm (model dependent)
Bottle height range: 40 mm to 240 mm

TECHNICAL DATA 3 HEAD ROTARY CAPPER
Production output: Up to 100 bottles/min.*
Cap size: 25 mm to 80 mm
Bottle diameter range: 25 mm to 100 mm (model dependent)
Bottle height range: 40 mm to 240 mm

*Output depends on machine model, container and closure.

Additional notes
The screw-cap application uses a magnetic-clutch system as standard to deliver reliable torque across cap types including CRC and induction-sealed closures. Servo torque control is offered as an option. Multiple head versions (3, 4, 6, 8 and 10) are available as fully integrated solutions with bowl feeders for cap supply.

Caractéristiques / spécifications techniques

• Series name: Capper Series
• Applications: Screw caps, press-on caps, child-resistant closures, induction-sealed closures
• Changeover: Tool-less, fast
• Control: Touchscreen HMI with recipe management
• Torque control: Standard magnetic clutches (low hysteresis); optional servo torque control
• Head versions: 3, 4, 6, 8, 10 head versions available
• Integrated cap feeding: Bowl feeder included on electrically adjusted stand with noise-reduction enclosure
• Inspection: Multiple cap inspection options
• Design: GMP-compliant, table-top layout for easy cleaning and access
• Production output: up to 300 bottles/min (integrated rotary capper); up to 100 bottles/min (3-head example)
• Cap size range: 25 mm – 80 mm
• Bottle diameter range: 25 mm – up to 120 mm (model dependent)
• Bottle height range: 40 mm – 240 mm
• Standard plant integration example: IMA Swiftpack
