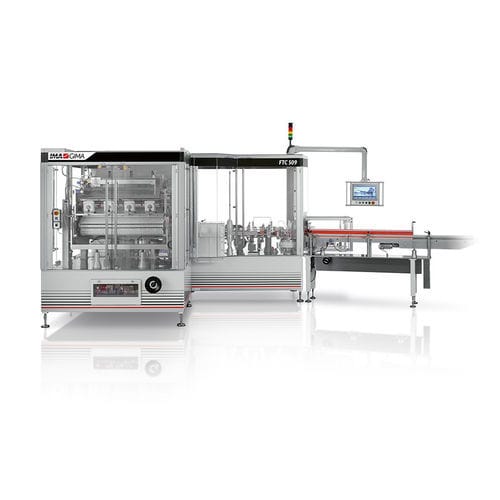

Electronic filling machine FTC517

verticalvolumetricweight

Overview
Medium- to high-speed vertical dosing and filling machines for cartons, plastic and metal containers of various types and sizes, with dispensers or top opening, pressure or screw caps, in a mono-block platform. IMA Gima vertical dosing and filling FTC Series can manage soft and rigid containers such as cartons, bottles, tins and jars with cylindrical, square and irregular shape. Dosing systems include slat or electronic counting, volumetric or weighing systems, based on extensive confectionery-industry experience. Machines are modular, fully accessible and allow easy implementation of additional feeding systems, printers and quality control units.

Applications / Products handled

• Confectionery: capsules, pellets, tablets, hard and soft candies, gums, coated sweets, liquorice, sweeteners, nuts, dried fruit
• Nutraceuticals and personal care products
• Cartons, bottles, tins, jars (cylindrical, square, irregular shapes)

Machine highlights

• Versatile machines for all product types and formats
• Wide format range and flexibility in closure styles (pressure, screw, top-opening)
• Compact mono-block design with full accessibility and ergonomic operator position
• Quick, user-friendly format changeover using mechanical references
• Turnkey line capability from pack design to end-of-line
• Modular architecture for easy integration of dosing, feeding and inspection units

Technical tables (key rows)
FTC SERIES – CARTONS
Columns: Model | A (width) [mm] | B (depth) [mm] | C (height) [mm] | A+B [mm] | flap | Blank | Production speed [ppm]
FTC509 / FTC517 – Min | 25 | 11 | 55 | 55 | 36 | – | FTC517: up to 450 (reference in table)
FTC509 / FTC517 – Max | 70 | 30 | 102 | 102 | 102 | 20 | (see model-specific speeds)
FTC509 / FTC517 extended eight – Min | 25 | 11 | 55 | 55 | 36 | – | (see model-specific speeds)
FTC509 / FTC517 extended eight – Max | 70 | 30 | 102 | 102 | 102 | 20 | (see model-specific speeds)
FTC578 (pitch 120 mm) – Min | 20 | 20 | 40 | 40 | 40 | 20 | Production speed: 300 ppm
FTC578 (pitch 120 mm) – Max | 90 | 90 | 140 (240) | 180 | 180 | 106 | (see table)
FTC578 (pitch 180 mm) – Min | 60 | 30 | 40 | 90 | 30 | (blank) | Production speed: 200 ppm
FTC578 (pitch 180 mm) – Max | 150 | 120 | 260 | 260 | 240 | 120 | (see table)

FTC SERIES – RIGID CONTAINERS (plastic or metal)
Columns: Model | A (width) [mm] | B (depth) [mm] | C (height) [mm] | Production speed [ppm]
FTC509 – Min | 25 | 11 | 55 | Production speed: 300 ppm
FTC509 – Max | 70 | 70 | 105 | Production speed: 300 ppm (table entry)
FTC517 – Min | 25 | 11 | 55 | Production speed: 450 ppm
FTC517 – Max | 70 | 70 | 105 | Production speed: 450 ppm

Notes
Machines available in multiple pitches/configurations (examples: FTC509, FTC517, FTC578) and designed for modular integration of dosing, feeding and inspection units. Production-speed values and dimensional ranges depend on model and configuration; consult model-specific data for exact figures.

caractéristiques / spécifications techniques

• Machine family: FTC Series (vertical dosing & filling)
• Manufacturer / Brand: IMA Gima
• Container types handled: cartons, plastic bottles, metal tins, jars (cylindrical, square, irregular)
• Dosing systems: slat counting, electronic counting, volumetric dosing, weighing systems
• Format changeover: mechanical references for quick, operator-friendly changeover
• Design: mono-block platform, compact footprint, full accessibility, ergonomic operator position
• Modularity: supports addition of feeders, printers, quality-control units and other peripherals
• Example model variants and top production speeds: FTC509 ~300 ppm (rigid containers), FTC517 ~450 ppm (rigid containers), FTC578 (various pitches) typical speed ranges 200–300 ppm depending on pitch/configuration
• Typical handled products: capsules, vials, pellets, tablets, hard/soft candies, gums, coated sweets, nuts, dried fruit, nutraceuticals
