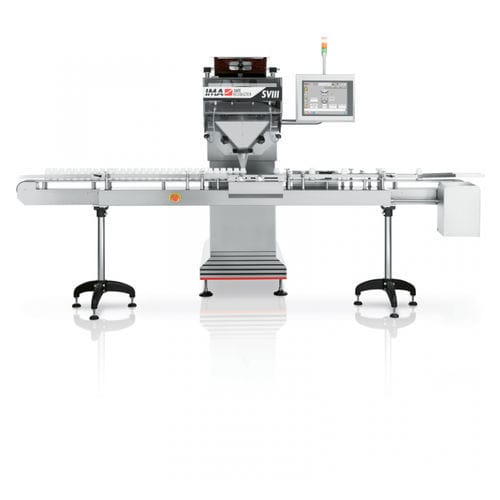

Counting-filling machine for the pharmaceutical industry SWIFTVISION

for capsulesbottlefor tablets

Product overview
SVIII is a versatile counting and filling system for tablet and capsule counting and dosing. Based on Swiftvision experience with over 300 machines delivered, the SVIII design preserves proven reliability while improving usability and uptime. The counter can be configured for different products and container requirements; count speed and accuracy are optimised by a product-flow feeding control system that prevents surges and maintains a constant product flow to the count head regardless of hopper level. The machine requires few or no change parts to maximise productivity.

Key features

• Flow control via counting-rate feedback to ensure consistent tablet flow to the count head.
• Single vibrator cover for faster and easier cleaning.
• Redesigned count head and pre-count gating for quick removal and improved access for cleaning and maintenance.
• New power lift mechanism to facilitate handling and container changeover.
• Electrostatic Field Sensor (EFS) option to maximise counting accuracy.
• Optional 21 CFR Part 11 compliance for electronic records and signatures.

Versions

• SVIII Single — one counting head mounted on a single base.
• SVIII Twin — two counting heads mounted on a single base for higher throughput.

Technical data
Model: SVIII SINGLE | SVIII TWIN
Production output: Single up to 60 bottles/min or 6,000 tablets/min; Twin up to 120 bottles/min or 12,000 tablets/min*
Container diameter range: 25 mm – 100 mm
Container height range: 40 mm – 200 mm
*Depending on product characteristics and container shape/size

Additional information
The SVIII range is engineered for high counting precision and operational simplicity: optimised product-flow feeding, robust count head design, configurable to customer product and container needs, and designed to reduce maintenance downtime. Minimal change parts maximise production uptime.

Technical specifications

• Commercial name: SVIII
• Configurations: SVIII Single; SVIII Twin
• Production output: Single up to 60 bottles/min or 6,000 tablets/min; Twin up to 120 bottles/min or 12,000 tablets/min
• Container diameter range: 25 mm – 100 mm
• Container height range: 40 mm – 200 mm
• Counting accuracy enhancements: product-flow feeding control system; Electrostatic Field Sensor (EFS) option
• Hygiene & maintenance: single vibrator cover; redesigned count head and pre-count gating for easy removal and cleaning
• Mechanics: new power lift mechanism
• Compliance option: 21 CFR Part 11 available
• Designed for minimal change parts to maximise productivity
