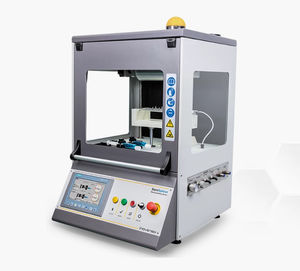

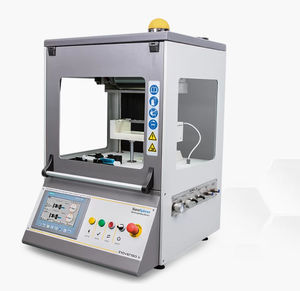

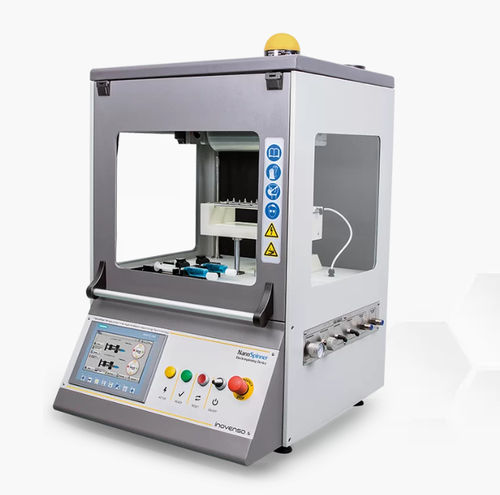

Nanofiber electrospinning machine NanoSpinner24

laboratorysprayingwith touch screen

Brief Explanation The NanoSpinner24 Advanced Electrospinning Machine from Inovenso is a laboratory-scale, multinozzle electrospinning/spraying system designed for high-throughput nanofiber production and research applications. It supports multiple collector types (flat, high-speed rotating drum for aligned fibers, and optional rotating rod for tubular membranes). Standard configuration uses 12 hybrid nozzles; configurable to single, 3 or 6 nozzles for flexible lab-scale production.

Unique Properties

• Reliable and precise process adjustments via 9” touch screen panel
• High-throughput production capability
• Up to 12 electrospinning/hybrid nozzles
• 376.8 mm × 280 mm nanofiber coating area
• High-speed rotating drum up to 2000 RPM for oriented/aligned nanofibers
• Adjustable horizontal movement to improve membrane uniformity
• Automatic adjustable spinning distance
• Safety features: safe-door and warning light to mitigate high-voltage risks
• CE certified and manufactured according to safety regulations
• Remote monitoring and control with Wi‑Fi connectivity

Precise Electrospinning/Spraying Process Adjustments Via 9” Touch Screen The 9” touch screen panel enables straightforward and accurate setting of process parameters.

• Ease of use with an intuitive interface for operators
• Precision: fine-tune voltage, flow and motion parameters directly on-screen
• Efficiency: quick adjustments and real-time feedback reduce downtime
• Clear visuals and easy navigation for laboratory operators

Remote Monitoring and Control System NE Series devices provide advanced remote monitoring and control functions:

• Wi‑Fi connectivity for local network access
• Real-time monitoring of all process parameters
• Full remote control of process parameters via dedicated software
• BatchID management to save and recall parameter sets
• Parameter storage for at least six months
• Graphical display of parameters linked to BatchID
• User authentication and activity logs for traceability
• Fault and alarm management with instant notifications to remote users

Save Time and Experience the Ease of Using Up To 12 Hybrid Nozzles The NanoSpinner24 supports a 12-hybrid-nozzle configuration for simultaneous multistream production, increasing output and uniformity. It also accepts single, 3- and 6-nozzle setups for flexible experimentation.

• Consistent nanofiber quality through precise control
• Hybrid nozzle design to process diverse polymer solutions

Fully Safe Electrospinning Machine Experiment Built-in safety systems protect operators and equipment:

• Safe-door system to prevent access during high-voltage operation
• Warning light to indicate operational/high-voltage status
• Designed and certified to meet international safety standards (CE)

Optional Accessories

• Different diameter needles
• Bicomponent (coaxial) system
• Gas shield nozzle
• Rotating shaft (rod) collector
• Vacuum holder plate collector
• Climate controls (temperature, humidifier, dehumidifier)
• Negative high voltage power supply
• Camera integration
• Carbon filter
• Extended warranty
• Syringe24 (syringe-related accessories)

Technical Specifications

• Model name: NanoSpinner24
• Manufacturer: Inovenso
• Nozzle configurations: up to 12 hybrid nozzles (configurable to single, 3, 6, 12)
• Nanofiber coating area: 376.8 mm × 280 mm
• Rotating drum collector: up to 2000 RPM (for aligned/oriented nanofibers)
• Optional rotating rod collector for tubular nanofiber membranes
• Control interface: 9” touch screen panel
• Movement: adjustable horizontal movement for uniform membrane production
• Spinning distance: automatic adjustable spinning distance
• Remote features: Wi‑Fi connectivity, remote monitoring and full remote control, BatchID management, parameter storage (≥6 months), activity and fault logs
• Safety: safe-door, warning light, CE certified
• Primary applications: laboratory-scale high-throughput nanofiber production, research and small-scale production
