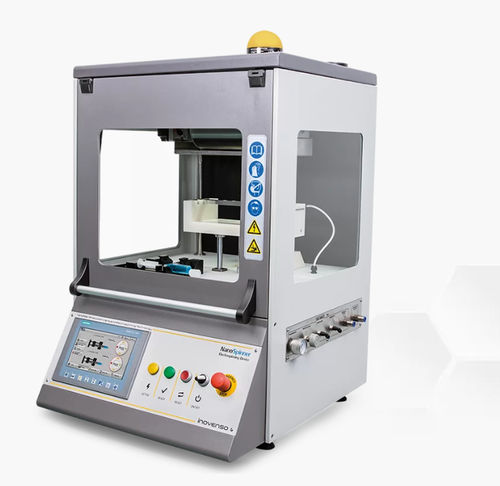

Nanofiber electrospinning machine NE200

sprayingwith touch screensingle-nozzle

Brief Explanation
The NE200 is an electrospinning/electrospraying system designed for researchers starting nanofiber production and related studies. The system is supplied with a flat collector and a rotating drum collector for producing aligned nanofibers and can accept optional rotating rod collectors to form tubular nanofiber membranes suitable for applications such as artificial blood vessels.

Unique Properties

• Precise process control via 9” touch screen panel
• High-throughput single-nozzle operation
• Interchangeable flat collector types
• Automatic nozzle-to-collector distance adjustment (30–230 mm)
• Optional humidity and temperature control chassis
• Safety options including safety door and warning light for high-voltage risk mitigation
• Designed and produced according to safety regulations; CE certified

Precise Process Adjustments Via 9” Touch Screen
The integrated 9” touch screen panel provides an intuitive interface for ease of use, fine-tuning of process parameters, quick adjustments with real-time feedback, and clear visual navigation to support efficient operation.

Remote Monitoring and Control System
The NE series includes a remote monitoring and control system offering the following capabilities:

• Wi‑Fi connectivity for local network access
• Comprehensive real-time monitoring of process parameters
• Full remote control of process parameters via dedicated software
• BatchID management to save and recall parameter sets
• Extended storage of used parameters for a minimum of six months
• Graphical display of parameters associated with BatchID
• User authentication for secure access
• Activity logs recording every remote and local action (with BatchID)
• Log monitoring and fault/alarm management with instant notifications to active remote users

Efficient and Versatile Nanofiber Production with Advanced Collectors
The system supports multiple collector types: a flat collector and a rotating drum collector are included; rotating rod collectors are available as options for producing tubular nanofiber structures. The machine supports automatic nozzle-to-collector distance adjustment and single-nozzle high-throughput operation.

Fully Safe Electrospinning Experiment
Safety features include a safety door and warning light systems to reduce risks associated with high voltage, support compliance with international safety standards, and improve operational safety and user confidence.

Optional Accessories

• Needles of different diameters
• Bicomponent system (coaxial needles)
• Gas shield nozzle system
• Rotating shaft (rod) collector
• Vacuum holder plate collector
• Climate controls (temperature / humidifier / dehumidifier)
• Negative high-voltage power supply
• Camera integration
• Carbon filter
• Extended warranty

Specifications

• Model: NE200
• Product type: Single-nozzle electrospinning / electrospraying machine
• Control interface: 9” touch screen panel
• Nozzle-to-collector automatic distance adjustment: 30–230 mm
• Included collectors: flat collector and rotating drum collector
• Optional collectors: rotating rod collectors for tubular nanofibers
• Remote system: Wi‑Fi connectivity, remote monitoring and control, BatchID management, graphical data display, user authentication, activity logs, fault/alarm management
• Data storage: retains used parameters for a minimum of 6 months
• Safety options: safety door, warning light; produced according to safety regulations; CE certified
• Environmental control options: humidity and temperature control chassis (optional)
• Capabilities: single-nozzle electrospinning and electrospraying; high-throughput production
