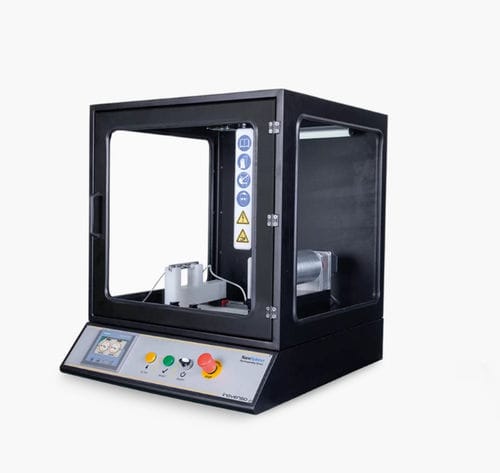

Nanofiber electrospinning machine NanoSpinner Plus

laboratorysprayingprogrammable

Brief Description
The NS + NanoSpinner Plus is an entry-level electrospinning and spraying unit designed to integrate essential components for a flexible small-scale nanofiber production workflow. It supports experiments on research budgets while enabling production of aligned or randomly collected nanofiber mats via rotating drum or plate collectors. The built-in homogeneity system helps produce uniform nanofiber membranes suitable for R&D and prototyping.

Key Features

• Entry-level electrospinning/spraying unit tailored for small-scale nanofiber production.
• Three hybrid nozzles for multi-mode processing.
• Compatible with rotating drum collector and plate collector to produce aligned or randomly collected nanofibers.
• Homogeneity system for consistent membrane uniformity.
• Protected cabinet design to reduce operator exposure to high voltage and solvent vapors.
• Upgradeable via Inovenso Scale Up Program to larger or more advanced configurations.

Precise Process Adjustments Via 4.3" Touch Screen

• Ease of use: intuitive interface simplifies operation for users with limited technical background.
• Precision: fine-tune process parameters directly on the 4.3" panel for consistent results.
• Efficiency: rapid adjustments and immediate feedback to streamline experimental cycles.
• User experience: clear visualization and straightforward navigation on the large touchscreen.

Safety Features

• Protected cabinet shielding operators from high voltage and solvent vapors.
• Integrated safe-door and warning light systems to reduce electrical and exposure risks during operation.
• Design aimed at facilitating compliance with common laboratory safety practices and reliable continuous operation.

Optional Accessories

• Different diameter needles/nozzles
• Bicomponent/coaxial system
• Carbon filter for solvent vapor control
• Negative high-voltage power supply
• Rotating shaft collector
• Camera integration for process observation
• Climate controls (humidifier / dehumidifier / temperature-controlled chamber)
• Vacuum holder plate collector
• Extended warranty

Multimedia and Documentation
Technical information sheet (PDF) and a product video are available for this model.

Technical Specifications

• Model name: NanoSpinner Plus
• Nozzles: 3 hybrid nozzles
• Collectors supported: rotating drum collector and plate collector
• Touch screen: 4.3" panel for process adjustments
• Homogeneity system: present for uniform nanofiber membrane production
• Safety: protected cabinet, safe-door and warning light systems to minimize exposure to high voltage and solvent vapors
• Intended use: entry-level, budget-friendly small-scale nanofibers research and development
• Upgradability: part of the Inovenso Scale Up Program allowing upgrades to more advanced machines
• Available optional accessories: different diameter needles/nozzles, bicomponent/coaxial capability, carbon filter, negative HV supply, rotating shaft collector, camera integration, climate controls, vacuum holder plate collector, extended warranty
