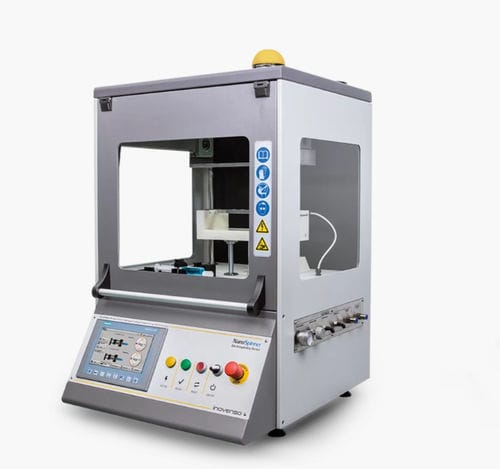

Nanofiber electrospinning machine NE100

laboratorysprayingprogrammable

Brief explanation
NE100 is a lab-scale single-nozzle electrospinning/electrospraying unit designed for controlled nanofiber production. It combines a high-throughput hybrid nozzle with a 9" touch screen for precise parameter adjustment, a rotating drum collector (up to 500 RPM) for oriented or aligned fiber deposition, WiFi-based remote monitoring and control, and safety protections. The unit is CE certified and compatible with the Inovenso Scale Up Program for upgrade paths to larger models.

Unique properties

• Precise process adjustment via 9" touch screen
• High-throughput production using a hybrid nozzle
• Single-nozzle electrospinning/electrospraying configuration
• Rotating drum collector up to 500 RPM for oriented/aligned fibers
• Automatic adjustable spinning distance
• Safety features: protected cabinet, safe-door and warning light to reduce high-voltage and solvent exposure risks
• Manufactured to applicable safety standards and CE certified
• Full remote monitoring and control of process parameters via WiFi
• Scalable within the Inovenso Scale Up Program

Precise process adjustments via 9" touch screen
The integrated 9" touch screen provides an intuitive interface for parameter entry, real-time feedback and quick recipe recall, allowing fine-tuning of voltage, flow rate, drum speed and other critical settings to ensure repeatable nanofiber production.

Remote monitoring and control system

• WiFi connectivity for local network access
• Real-time monitoring of all process parameters
• Full remote control through the supplied software
• BatchID management to save and recall parameter sets
• Parameter storage for a minimum of six months
• Graphical display of process data linked to BatchID
• User authentication for secure access
• Activity logs recording remote and local operations with BatchID
• Fault and alarm management with instant notifications to active remote users

Safety
NE100 includes a protected cabinet, safe-door system and warning light to minimise exposure to high voltage and solvent vapours. The unit is built to comply with relevant safety regulations and is CE certified.

Optional accessories

• Different diameter needles
• Bicomponent system
• Gas shield nozzle
• Rotating shaft collector
• Vacuum holder plate collector
• Climate controls (temperature / humidifier / dehumidifier)
• Negative high voltage power supply
• Camera integration
• Carbon filter
• Extended warranty

Technical specifications

• Model: NE100
• Type: Single-nozzle electrospinning/electrospraying unit for lab-scale nanofiber production
• Touch screen: 9" touch screen panel for precise process adjustments
• Nozzle: High-throughput hybrid nozzle (single-nozzle configuration)
• Collectors: Rotating drum collector (up to 500 RPM) for oriented/aligned fibers; includes flat collector for deposition
• Spinning distance: Automatic adjustable spinning distance
• Connectivity: WiFi for remote monitoring and full remote control
• Remote software features: BatchID management, minimum 6 months parameter storage, graphical data display, user authentication, activity logs, fault and alarm management
• Safety: Protected cabinet, safe-door, warning light; designed to comply with safety regulations
• Certification: CE certified
• Scalability: Part of Inovenso Scale Up Program (upgrade path to more advanced models)
• Applications: Small-scale nanofiber production, oriented/aligned nanofibers, laboratory R&D
