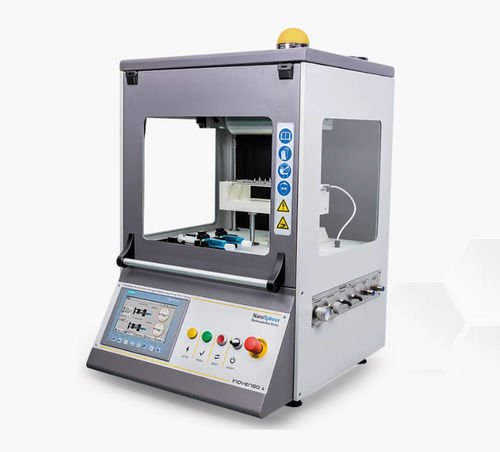

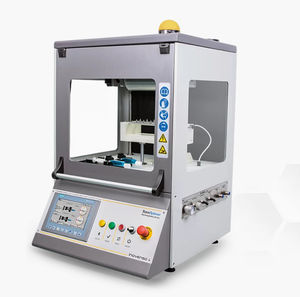

Nanofiber electrospinning machine NE300

laboratorysprayingcompact

Brief Description The NE300 is a compact lab-scale electrospinning and spraying system designed for flexible R&D and small-scale production. It supports multinozzle operation (up to 8 nozzles) as well as single-nozzle mode and includes a homogeneity system for uniform nanofiber coatings. The cabinet is electrically insulated and fitted with high-density PE components resistant to many chemical solutions. Optional coaxial modules enable core-shell, hollow and bi-component fiber production.

Unique Properties

• 9” touch screen for reliable and precise process adjustments
• Bottom-Up spinning configuration
• Up to 8 nozzles for increased throughput
• Coating area: 314 mm × 220 mm
• Electrically insulated cabinet with chemical-resistant high-density PE parts
• Automatic control of voltage, flow rate and collector motion (z-axis, x-axis and rotation)
• Safety options including safe-door and warning light

Precise Process Adjustments Via 9” Touch Screen The 9” touch screen provides an intuitive interface for quick setup and fine-tuning of process parameters, delivering benefits such as:

• Ease of Use: Simplified operation for users with varying technical backgrounds
• Precision: Direct control of voltage, flow and motion for repeatable results
• Efficiency: Fast adjustments and real-time feedback to reduce downtime
• User Experience: Clear visuals and straightforward navigation

Remote Monitoring and Control System NE Series units include remote monitoring and control features:

• Wi-Fi Connectivity: Built-in adapter for network connection
• Comprehensive Monitoring: Real-time remote monitoring of all process parameters
• Full Control: Remote adjustment of process settings via software
• BatchID Management: Save and recall parameter sets with BatchID
• Extended Storage: Store parameter histories for at least six months
• Graphical Data Display: Visualize parameter trends linked to BatchID
• User Authentication: Secure access through software authentication
• Activity Logs: Record remote and local activities with BatchID
• Fault and Alarm Management: Save messages and notify active remote users

High-Throughput & Flexible Production The NE300’s 8-nozzle configuration enables simultaneous production of multiple nanofiber streams to increase output and uniformity. The unit also supports single-nozzle operation for low-throughput experiments. Automatic regulation of voltage, solution flow and collector motion ensures reproducible coating results.

Safety Features Inovenso design includes advanced safety options to reduce electrical risks and support compliance:

• Safe-door and warning light systems to prevent exposure to high voltage
• Enhanced protection for operators and equipment
• Features designed to assist conformity with relevant safety standards
• Operational continuity and increased user confidence

Optional Accessories

• Needles of different diameters
• Coaxial (bicomponent) system
• Gas shield nozzle system
• Rotating shaft collector
• Vacuum holder plate collector
• Climate control (temperature / humidifier / dehumidifier)
• Negative high voltage power supply
• Camera integration
• Carbon filter
• Extended warranty

Technical Specifications

• Model: NE300
• Configuration: Multinozzle (up to 8 nozzles) with single-nozzle capability
• Coating area: 314 mm × 220 mm
• Control interface: 9” touch screen
• Spinning type: Bottom-Up spinning
• Cabinet: Electrically insulated with high-density PE parts (chemical resistant)
• Automatic controls: Voltage, flow rate, collector motion (z-axis, x-axis, rotation)
• Homogeneity system for uniform nanofiber coating
• Remote system: Wi‑Fi, real-time monitoring, remote control, BatchID management, data storage (≥ 6 months), graphical display, user authentication, activity logs, alarm management
• Safety options: Safe-door, warning light
• Optional features: Coaxial system (core-shell, hollow, bi-component), gas shield nozzle, different diameter needles, rotating shaft collector, temperature-controlled chamber, vacuum holder plate collector, camera integration, carbon filter, negative HV power supply
