Electric wheelchair PIONEER Y201

for disabled peopleoutdoorindoor

Overview

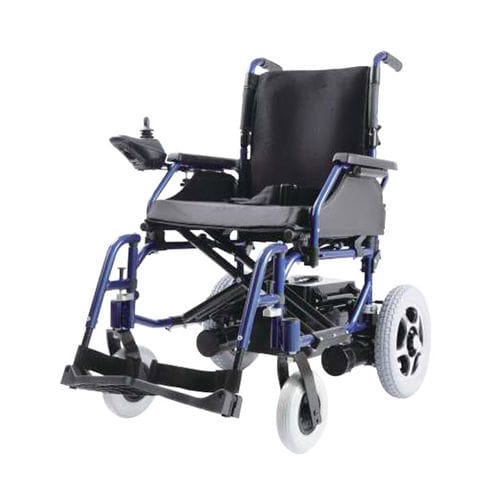

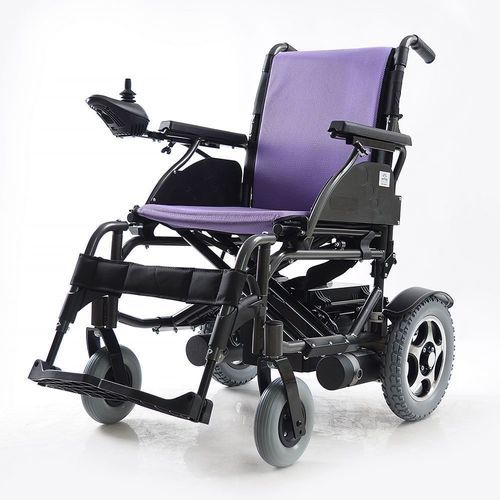

Compact power wheelchair PIONEER Y201 designed for assisted mobility, featuring a half-folding backrest, safety belt and electromagnetic brake for secure everyday use.

Key Features

• Half-folding backrest
• Safety belt
• Electromagnetic brake
• Flip-back slope armrest with PU armpad
• Detachable footrest with heel support
• 200W × 2 brushed motors
• Lead-acid battery 2 × 12V (20Ah standard; 32Ah/36Ah optional)
• Approx. range 20 km; top speed 7 km/h; max capacity 135 kg

Construction & Components

• Frame: Steel or Aluminum, powder coated
• Front caster: 8" PU
• Rear wheel: 12.5" pneumatic/PU with aluminum alloy rim
• Seat/back: Tension nylon with sponge and thick cushion
• Armrest: Flip-back slope armrest with PU armpad
• Footrest: Detachable with heel support
• Motor: 200W × 2 (brushed)
• Controller: PG/China
• Packaging: 75 pcs/20" GP, 185 pcs/40" HQ

Product Parameters (table)
Material | Overall Length (cm) | Overall Width (cm) | Overall Height (cm) | Overall Width Folded (cm) | Seat Width (cm) | Seat Depth (cm) | Back Height (cm) | Floor to Seat Height (cm) | Weight Capacity (kg) | Front Caster Spec. | Rear Wheel Spec. | G./N. Weight (kg) | Carton Size (cm)
Steel | 108 | 63 | 97 | 34 | 43–48 | 43 | 45 | 52 | 135 | 8" | 12.5" | 65.6/61.6 | 87*38*81
Aluminum | 108 | 63 | 97 | 34 | 43–48 | 43 | 45 | 52 | 135 | 8" | 12.5" | 58.0/50.3 | 87*38*81

Technical specifications

• Model: PIONEER Y201
• Frame material: Steel or Aluminum (powder coating)
• Motor: 200W × 2 (brushed)
• Battery: Lead acid 2 × 12V — 20Ah standard; 32Ah/36Ah optional
• Range: Approximately 20 km
• Top speed: 7 km/h
• Maximum load capacity: 135 kg
• Front caster: 8" PU
• Rear wheel: 12.5" pneumatic/PU, aluminum alloy rim
• Armrest: Flip-back slope armrest with PU armpad
• Footrest: Detachable with heel support
• Seat/back: Tension nylon with sponge, thick cushion
• Package quantities: 75 pcs/20" GP, 185 pcs/40" HQ
