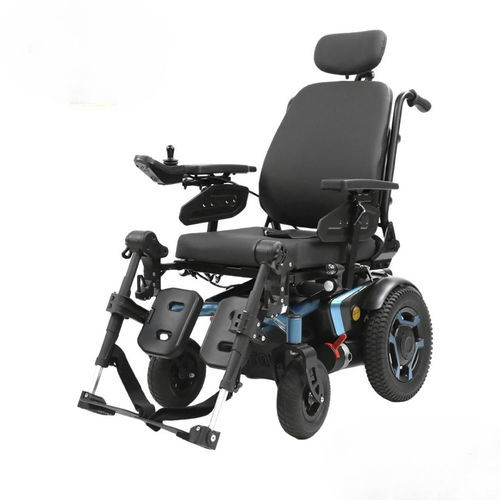

Electric wheelchair STAR

for disabled peopleoutdoorindoor

Overview
STAR is a power wheelchair intended for daily indoor and outdoor mobility in clinical and care environments. It combines ergonomic seating, rear suspension and a 24V 52Ah lead-acid battery to provide stable performance and extended range for patient transport and independent mobility.

Main description
Power wheelchair. Multi-angle seat adjustment; integrated rear lights; Dynamic/PG controller options; dual 340W motors with electromagnetic braking.

Key product details

• Frame: Steel, powder-coated finish
• Controller: Dynamic (drive only / drive + light + actuator)
• Motor: 2 × 340W with electromagnetic brake
• Maximum speed: 10 km/h
• Range: 30 km (dependant on load and terrain)
• Battery: Lead-acid 24V 52Ah (30 kg)
• Wheels: Front 9" ×3", Rear 14" ×3"
• Total mass (with battery): 106.5 kg
• Seat width/depth: 43–48 cm
• Payload capacity: 136 kg
• Minimum turning radius: 900 mm
• Maximum safe slope: 10°
• Maximum obstacle height: 50 mm

Product Parameters (table)

• ITEM NO.: STAR | Overall Length (cm): 108 | Overall Width (cm): 58 | Overall Height (cm): 121.5
• Height Footplate (cm): 13–20 | Seat Width (cm): 43–48 | Seat Depth (cm): 43–48 | Floor to Seat Height (cm): 75
• Weight Capacity (kg): 136 | Front Caster Spec.: 9" | Rear Wheel Spec.: 14"
• Total Mass (inc./ex. bat.) (kg): 106.5/76.5 | Carton Size (cm): 102 × 72.5 × 85

Features summary

• Adjustable multi-angle seating for user positioning
• Integrated rear lights for visibility
• Controller options: drive only or drive with light and actuator
• Electromagnetic motor brake system
• Lead-acid 24V 52Ah battery for extended daily use
• Rear suspension to improve comfort on varied surfaces

Technical specifications

• Model: STAR
• Frame material: Steel with powder coating
• Controller type: Dynamic (drive only / drive + light + actuator)
• Motor: 2 × 340W with electromagnetic brake
• Maximum speed: 10 km/h
• Range: 30 km
• Battery: Lead-acid 24V 52Ah (battery weight 30 kg)
• Front wheels: 9"
• Rear wheels: 14"
• Total mass (with battery): 106.5 kg (without battery: 76.5 kg)
• Maximum safe slope: 10°
• Turning radius: 900 mm
• Minimum braking distance at max speed: 1700 mm
• Maximum obstacle height: 50 mm
• Seat width/depth: 43–48 cm
• Floor to seat height: 75 cm
• Overall dimensions (L×W×H): 108 × 58 × 121.5 cm
• Carton size: 102 × 72.5 × 85 cm
• Weight capacity: 136 kg
