Electric wheelchair ENGULM (Y301)for disabled peopleoutdoorindoor
Add to favorites
Compare this product
Characteristics
- Propulsion
- electric
- Patient
- for disabled people
- Applications
- outdoor, indoor
- Options
- height-adjustable, reclining
- Accessories
- with legrest, with headrest, with armrests
- Frame materials
- steel frame
- Total height (cm)
99.5 cm
(39.2 in)- Total length (cm)
114.3 cm
(45 in)- Total width (cm)
62.5 cm
(24.6 in)- Tare weight (kg)
98 kg
(216.1 lb)- Max supported weight (kg)
135 kg
(297.6 lb)- Max speed (km/h)
9 km/h
(5.6 mph)
Description
Product Overview

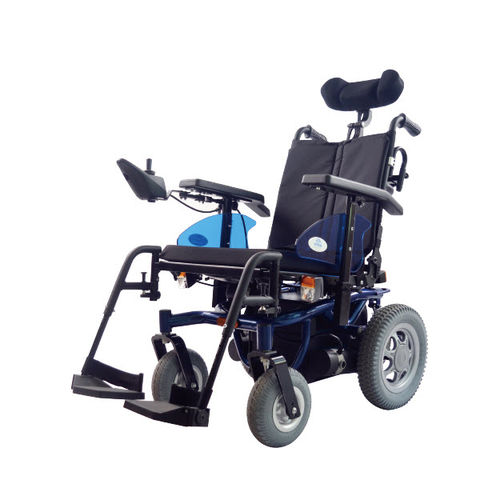

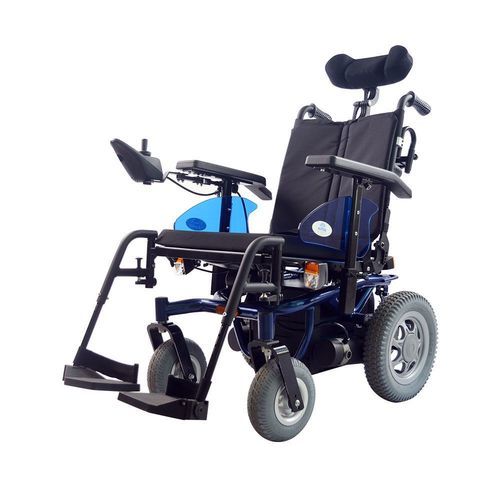

The ENGULM Y301 is a powered wheelchair designed for clinical and institutional use. It features powered seat tilting and back reclining, adjustable seat dimensions and a dual-motor drive suitable for indoor and outdoor circulation within its specified range.
Key Features
Detailed Components & Options
Product Parameters
Notes
Technical specifications
The ENGULM Y301 is a powered wheelchair designed for clinical and institutional use. It features powered seat tilting and back reclining, adjustable seat dimensions and a dual-motor drive suitable for indoor and outdoor circulation within its specified range.
Key Features
- Powered seat tilting and back reclining
- Adjustable seat width (43–50 cm) and seat depth (33–50 cm)
- Headrest and wide PU armpads
- Electromagnetic braking system
- Lighting system for visibility
- Dual 340W brushed motors
Detailed Components & Options
- Frame: Steel with powder coating
- Front wheel: 9" pneumatic or PU tire
- Rear wheel: 14" pneumatic tire, aluminum alloy rim
- Armrest: Height-adjustable armrest with wide PU armpad
- Footrest: Detachable footrest with heel support, width-adjustable
- Seat and backrest: Tension nylon backrest with removable thick cushion
- Motor: 340W × 2 (brushed); alternative motor options available
- Battery: Lead-acid 24V 50Ah standard (36Ah optional)
- Controller: PG/Dynamic
- Package: 30 pcs/20"GP, 66 pcs/40"GP
Product Parameters
- Model: ENGULM (Y301)
- Overall length: 114.3 cm
- Overall width: 62.5 cm
- Overall height: 99.5 cm
- Seat width: 43–50 cm
- Seat depth: 33–50 cm
- Back height: 49.5 cm
- Floor to seat height: 50 cm
- Front caster: 9"
- Rear wheel: 14"
- Range (travel mileage): 25 km
- Maximum speed: 9 km/h
- Maximum capacity: 135 kg
- Gross/Net weight: 110.0 / 98.0 kg
- Carton size: 102 × 77 × 97 cm
Notes
- Seat width and depth are adjustable to fit user needs.
- Battery configurations: standard 24V 50Ah; 36Ah available as an option.
- Drive: dual 340W brushed motors provide propulsion; alternative motor specifications may be offered.
Technical specifications
- Frame material: Steel with powder coating
- Front wheel: 9" pneumatic or PU
- Rear wheel: 14" pneumatic, aluminum alloy
- Armrest: Height adjustable with wide PU armpad
- Footrest: Detachable with heel support, width adjustable
- Controller: PG/Dynamic
- Battery type: Lead acid 24V 50Ah (36Ah optional)
