Electric wheelchair SPLIT II (Y209)

for disabled peopleoutdoorindoor

Overview

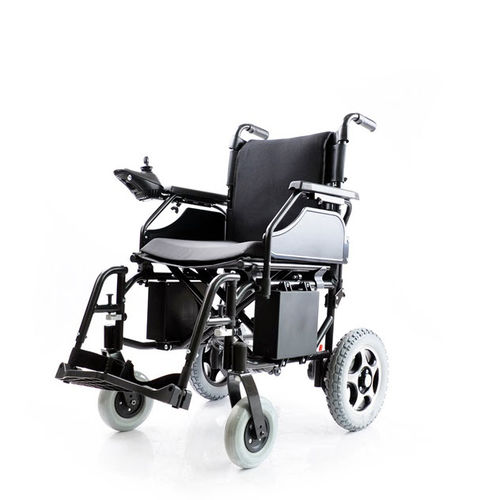

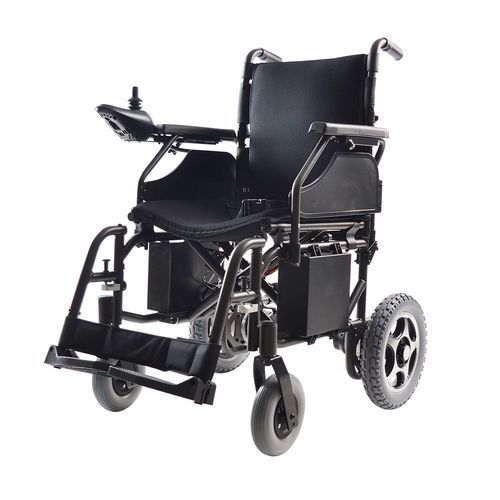

The SPLIT II (Y209) by INTCO Medical is a folding power wheelchair designed for daily indoor and outdoor mobility. It integrates dual 250W brush motors, an electromagnetic parking brake and a half-folding backrest to facilitate transport and storage. This specification sheet is intended for B2B procurement, clinical assessors and assisted-living operators.

Key features

• Electromagnetic brake for secure stopping on slopes
• Safety belt for user protection
• Half-folding backrest for compact storage and transport
• Dual 250W brushed motors (250W x 2)
• Battery: Lead-acid 2 × 12V 20Ah
• Max. speed: 7 km/h · Range: 15 km
• Maximum load capacity: 135 kg
• Armrests: Flip-back slope armrest with PU armpad
• Footrest: Detachable with heel support
• Wheels: Front 8" PU casters; Rear 12.5" pneumatic/PU with steel spokes

Technical specifications

• Controller: PG/China
• Motor: 250W × 2 brushed motors
• Battery: 2 × 12V 20Ah lead-acid
• Travel mileage: 15 km · Max. speed: 7 km/h · Max. capacity: 135 kg
• Front caster: 8" PU · Rear wheel: 12.5" pneumatic/PU, steel spoke
• Seat & backrest: Tension nylon with sponge and thick cushion
• Packaging capacity: 95 pcs / 20" GP, 245 pcs / 40" HQ

Product parameters (per seat size)

• 15": Overall L 108 cm · W 63 cm · H 97 cm · Width folded 46 cm · Seat W 38 cm · Seat depth 44 cm · Back height 44 cm · Floor-to-seat 44 cm · G./N. weight 37.0/35.0 kg · Carton 87×48×81 cm
• 18": Overall L 108 cm · W 63 cm · H 97 cm · Width folded 46 cm · Seat W 45 cm · Seat depth 44 cm · Back height 44 cm · Floor-to-seat 44 cm · G./N. weight 37.0/35.0 kg · Carton 87×48×81 cm
• 20": Overall L 108 cm · W 63 cm · H 97 cm · Width folded 46 cm · Seat W 50 cm · Seat depth 44 cm · Back height 44 cm · Floor-to-seat 44 cm · G./N. weight 37.0/35.0 kg · Carton 87×48×81 cm

Use cases & target buyers
The SPLIT II (Y209) is suitable for assisted-living facilities, clinical mobility programs and procurement for transport-limited users who require a compact, foldable powered wheelchair. Buyers should select seat size and verify local safety and accessibility requirements before purchase.

Packaging & logistics
Packaged for efficient shipping: 95 units per 20" GP container and 245 units per 40" HQ. Individual carton size: 87×48×81 cm. G./N. weight: 37.0/35.0 kg (model-dependent).

Notes
Consult local regulations and clinical assessment for suitability. Technical data are subject to change; confirm final specifications with INTCO Medical representative before ordering.
