Electric wheelchair E-LITEindoorfoldingwith armrests
Add to favorites
Compare this product
Characteristics
- Propulsion
- electric
- Applications
- indoor
- Options
- folding
- Accessories
- with armrests
- Frame materials
- carbon fiber frame
- Main color
- black
- Total height (cm)
97 cm
(38.2 in)- Total length (cm)
93 cm
(36.6 in)- Total width (cm)
58 cm
(22.8 in)- Tare weight (kg)
11.5 kg
(25.4 lb)- Max supported weight (kg)
136 kg
(299.8 lb)- Max speed (km/h)
6 km/h
(3.7 mph)
Description
Overview

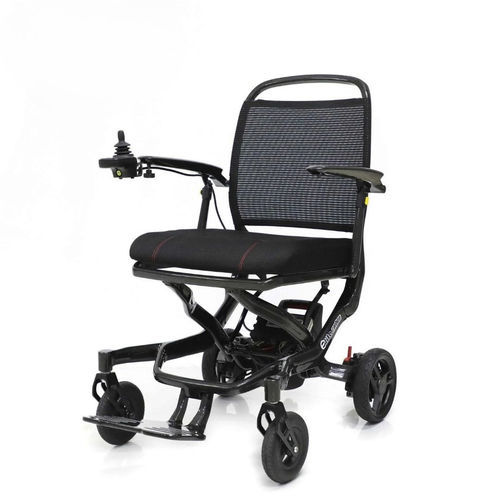

The E-LITE electric wheelchair features a full carbon fiber frame for a very low curb weight and is designed for everyday mobility, transport and clinical use. It is foldable for storage and transit and includes visibility elements and ergonomic seating adapted for assisted users.
Key Features
Product Details
Product Parameters
Overall Length(cm) | Overall Width(cm) | Overall Height(cm) | Height Footplate(cm) | Seat Width(cm) | Seat Depth(cm) | Back Height(cm) | Floor to Seat Height | Total Mass (inc./ex.bat.)(kg) | Carton Size(cm)
93 | 58 | 97 | 15 | 44.5 | 46.5 | 50 | 49.5 | 13.5/11.5 | 95*60*70
Specifications
The E-LITE electric wheelchair features a full carbon fiber frame for a very low curb weight and is designed for everyday mobility, transport and clinical use. It is foldable for storage and transit and includes visibility elements and ergonomic seating adapted for assisted users.
Key Features
- Full carbon fiber body
- BLDC drive system
- PG Brushless controller
- Easy to fold for transport
- Lateral and rear reflectors plus rear light
- Age- and user-friendly ergonomic design
- Multiple frame color options
Product Details
- Model name: E-LITE
- Controller: PG Brushless controller
- Motor: 200W with electromagnetic brake
- Max speed: 6 km/h
- Range: 15 km
- Battery: 24V 12Ah Li-ion (battery weight: 2 kg)
- Seat surface angle: 4°
- Backrest angle: 10°
- Total mass (with battery): 13.5 kg (without battery: 11.5 kg)
- Max safe slope: 6°
- Minimum turning radius: 1100 mm
- Minimum width required to reverse: 1100 mm
- Maximum obstacle height: 40 mm
- Package capacity: 253 pcs/40HQ
- Weight capacity: 136 kg
- Front caster: 7"
- Rear wheel: 8.5"
- Carton size: 95 x 60 x 70 cm
Product Parameters
Overall Length(cm) | Overall Width(cm) | Overall Height(cm) | Height Footplate(cm) | Seat Width(cm) | Seat Depth(cm) | Back Height(cm) | Floor to Seat Height | Total Mass (inc./ex.bat.)(kg) | Carton Size(cm)
93 | 58 | 97 | 15 | 44.5 | 46.5 | 50 | 49.5 | 13.5/11.5 | 95*60*70
Specifications
- Body: full carbon fiber
- Drive system: BLDC
- Controller: PG Brushless controller
- Motor: 200W with electromagnetic brake
- Battery: 24V 12Ah Li-ion (2 kg)
- Range: 15 km
- Top speed: 6 km/h
- Max safe slope: 6°
- Turning radius (min): 1100 mm
- Minimum width to reverse: 1100 mm
- Maximum obstacle height: 40 mm
- Total mass (with battery): 13.5 kg (without battery: 11.5 kg)
- Seat width: 44.5 cm; Seat depth: 46.5 cm; Back height: 50 cm; Floor-to-seat height: 49.5 cm
- Weight capacity: 136 kg
- Wheels: front caster 7", rear wheel 8.5"
- Packaging: 253 pcs per 40HQ; Carton size: 95 x 60 x 70 cm
